Panduit DNF18-250FI-L

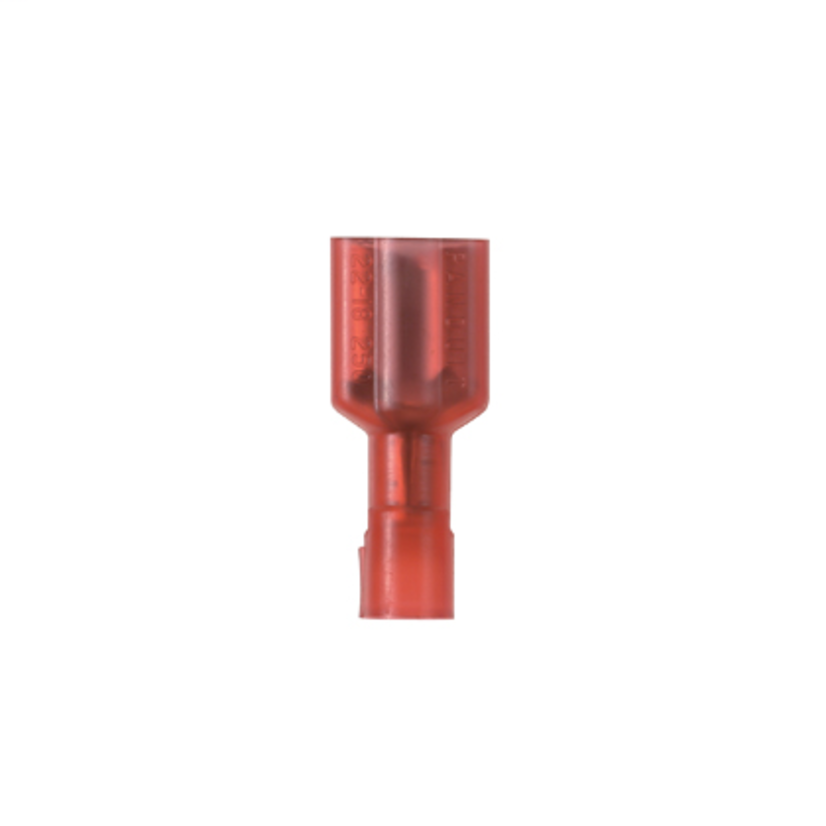

Panduit Pan-Term DNF18-250FI-L Type DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Red, Fully Barrel Insulated
Panduit DNF18-250FI-L
Panduit Pan-Term DNF18-250FI-L Type DNF-FI Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Red, Fully Barrel InsulatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Pan-Term Female Disconnect, Type DNF-FI Loose Piece Vibration-Resistant, Stranded Conductor, 22 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Crimp Terminal, 600 V, Specifications: 0.14 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Red, Tin Plated, 0.94 in L x 0.36 in W x 0.21 in H Dimensions, Insulated: Fully Barrel Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeFunnel Entry/Sleeved
ColorRed
Conductor size22 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.94 in L x 0.36 in W x 0.21 in H
FinishTin Plated
InsulatedFully Barrel Insulated
ManufacturerPanduit
MaterialBrass
Package Height1.8 IN
Package Length3.6 in
Package Volume10.37 cu-in
Package Weight0.2 lb
Package Width1.85 IN
SeriesDNF-FI
Tab Size0.25 in W x 0.032 in THK
Temperature Rating221 deg F
Terminal TypeCrimp
TypeType DNF-FI Loose Piece Vibration-Resistant
Type / StyleVibration Resistant
Voltage Rating600 V
Documents
Applications
For making quick and repeatable interconnections
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
0.14 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
