Panduit CJ6X88TGRD-24

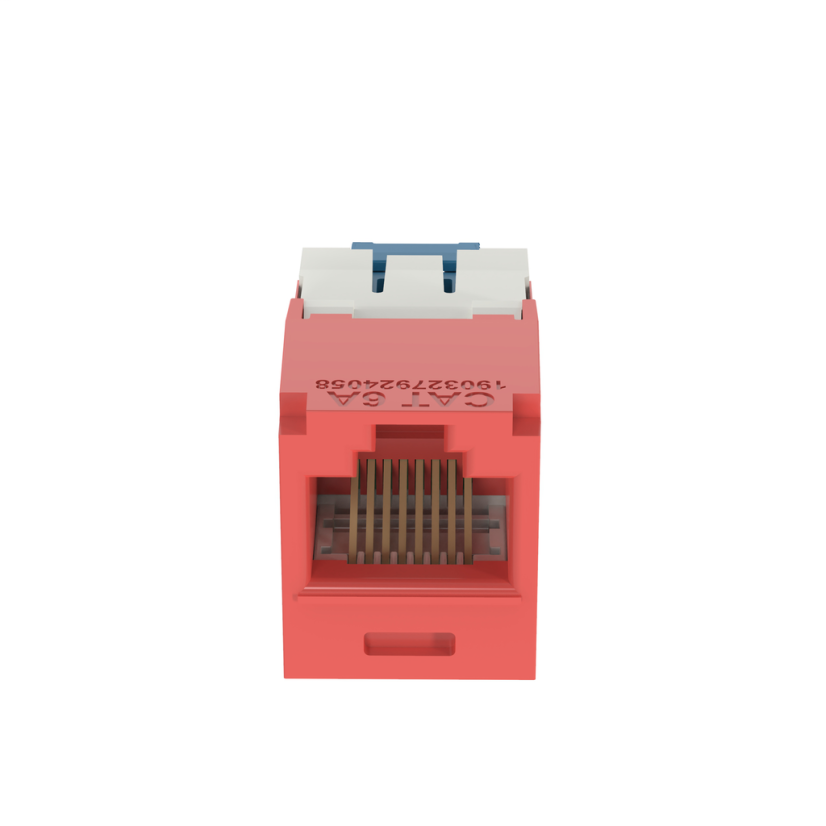

Panduit 10Gig PanNet TX6A CJ6X88TGRD-24 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6A RJ45/Mini-Com Module, 1 Port, ABS/Polycarbonate, Red
Panduit CJ6X88TGRD-24
Panduit 10Gig PanNet TX6A CJ6X88TGRD-24 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 6A RJ45/Mini-Com Module, 1 Port, ABS/Polycarbonate, RedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJ6X88TGRD-24
Werner Part #4017525
UPC074983010844
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJ6X88TGRD-24
Werner Part #4017525
UPC074983010844
Product Description
Panduit 10Gig PanNet TX6A Jack Module, 8-Position 8-Wire Universal TG Style Unshielded, Cat 6A RJ45/Mini-Com Module, 1 Ports, ABS/Polycarbonate, Red, 0.63 in W x 1.5 in D x 0.71 in H
Attributes
Documents
Applications
Included
Features
Attributes
ColorRed
Country of OriginUS
Dimensions0.63 in W x 1.5 in D x 0.71 in H
ManufacturerPanduit
MaterialABS/Polycarbonate
Module TypeCat 6A RJ45/Mini-Com
Number of Ports1
Type8-Position 8-Wire Universal TG Style Unshielded
Type / Style8-Position 8-Wire RJ45 Universal TG Style
Documents
Applications
For unshielded applications
Included
EGJT Termination Tool
Features
- Compatible with components of the TX6A and TX6A-SD 10 Gig UTP copper cabling system with MaTriX technology (100 and 70 m solutions) for increased design flexibility
- Innovative MaTriX split foil technology provides superior alien crosstalk performance enabling high density applications (48-ports, 1RU)
- Confidence that each jack module will deliver the critical electrical performance requirements
- Marked with quality control number for future traceability
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Each module is 100% factory tested to exceed industry standard performance requirements
- TG style termination eliminates the need for a termination tool
- Each jack is individually serialized for traceability and is compatible with Mini-Com shielded modular patch panel and faceplate
- The Mini-Com Cat 6A UTP RJ45 TG jack module is designed to terminate four-pair, 26 to 22 AWG twisted pair cable
- Interoperable compatible with components of the TX6A and TX6a-SD 10Gig UTP copper cabling system with MaTriX technology (100 m and 70 m solutions) for increased design flexibility
- Alien crosstalk suppression
- 100% performance tested
- Individually serialized marked with quality control number for future traceability
