Panduit CJ5E88TGBL-24

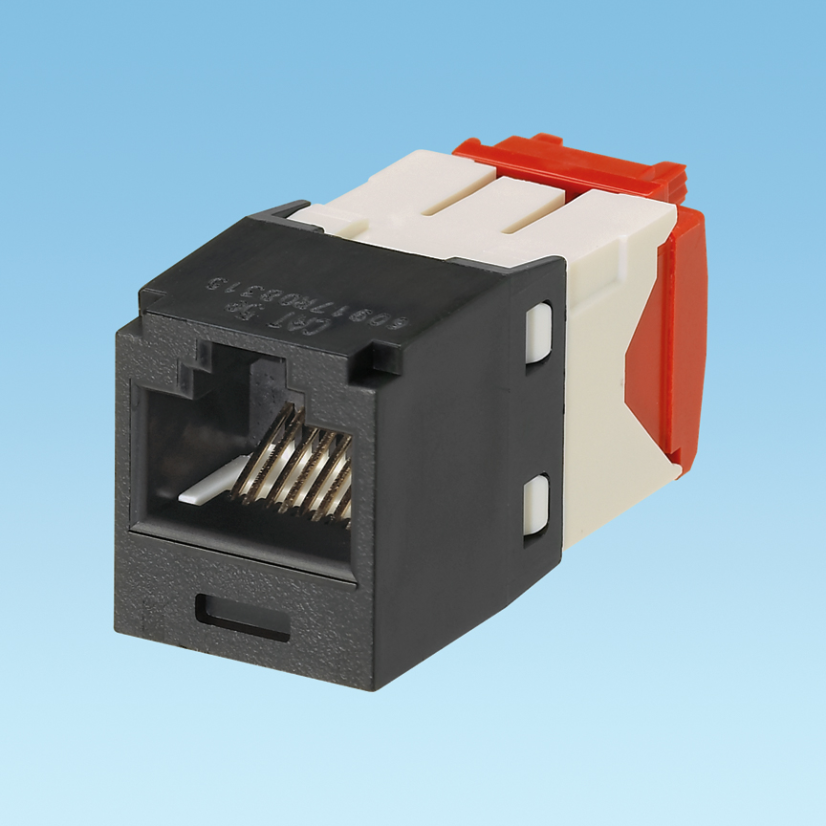

Panduit PanNet Mini-Jack TX5e CJ5E88TGBL-24 1-Slot 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, Black
Panduit CJ5E88TGBL-24
Panduit PanNet Mini-Jack TX5e CJ5E88TGBL-24 1-Slot 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, BlackNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJ5E88TGBL-24
Werner Part #3953418
UPC074983011001
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CJ5E88TGBL-24
Werner Part #3953418
UPC074983011001
Product Description
Panduit PanNet Mini-Jack TX5e Jack Module, 1-Slot 8-Position 8-Wire Universal TG Style Unshielded, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Ports, ABS/Plastic, Black, 0.62 in W x 1.5 in D x 0.71 in H
Attributes
Documents
Applications
Included
Features
Attributes
ColorBlack
Country of OriginCR
Dimensions0.62 in W x 1.5 in D x 0.71 in H
ManufacturerPanduit
MaterialABS/Plastic
Module TypeCat 5e RJ45/Mini-Com
Mounting TypeSurface
Number of Ports1
Type1-Slot 8-Position 8-Wire Universal TG Style Unshielded
Type / Style8-Position 8-Wire RJ45 Universal TG Style
Documents
Applications
10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 4/16 Token Ring, Voice/Data Systems and Voice Over Internet Protocol (VoIP) Applications
Included
EGJT Termination Tool
Features
- Confidence that each jack module will deliver the critical electrical performance requirements
- Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installations time and expense
- Conductor retention slots simplify jack module termination
- UTP jack modules snap-in and out of all Mini-Com faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
- Controls cable bend radius for long term installed performance
- Marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords and backwards compatible
- Color specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non-keyed modular plugs , offering network design flexibility, versatility, accommodating discrete networks for enhanced security
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- Provides a simple and secure method to control access to data ports while not in use
- Integrated shuttered door keeps out dust and debris of unmated RJ45 jack modules
