Panduit CD-920-1

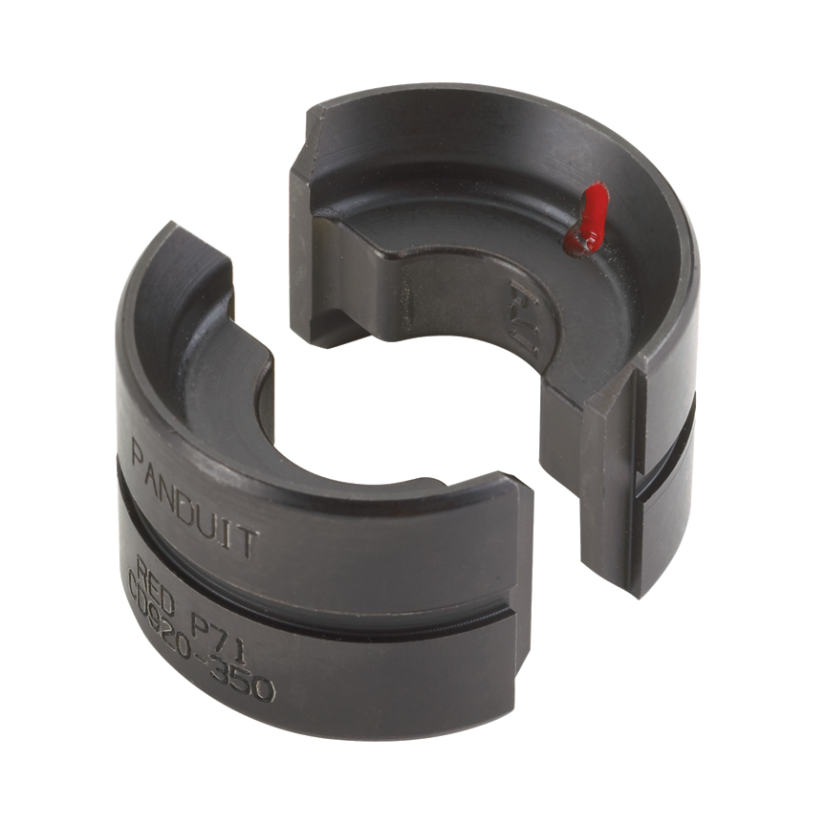

Panduit Pan-Lug CD-920-1 Crimp Die, 1 AWG, Steel
Panduit CD-920-1
Panduit Pan-Lug CD-920-1 Crimp Die, 1 AWG, SteelNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CD-920-1
Werner Part #1696123
UPC074983914425
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #CD-920-1
Werner Part #1696123
UPC074983914425
Product Description
Panduit Pan-Lug Crimp Die, Series: CD-920, 1 AWG Cable, Steel
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
ManufacturerPanduit
MaterialSteel
Package Height0.9 in
Package Length5 in
Package Volume26873.9 cu-in
Package Weight0.5 lb
Package Width3.4 in
SeriesCD-920
Type / StyleDies
Documents
Applications
For use with CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931, CT-2931/E crimping tool, CT-930/CH and CT-930LPCH crimp head, Panduit CT-2940/L, CT-2940/LE crimp tools and CT-940CH crimp head with CD-94, Panduit power connectors and splices applications
Features
- Embosses die index number on connector barrel to provide post crimp inspection
- color-coded to provide easy matching to color coding marked on connector
- color-coded to connector, premium crimp, embosses die number
- Part number permanently marked on crimping die for easy identification
- Provide circumferential crimp results in termination with premium electrical and mechanical performance
- Crimping dies and connector are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification
- Color coded for easy matching to color coding marked on connectors
- Embosses die index number on connector barrels for post crimp inspection
- Part number permanently marked on crimping die for easy identification
- Provides circumferential crimp resulting in terminations with premium electrical and mechanical performance
- 1 AWG copper, 4 AWG aluminum
