Panduit BT2S-M

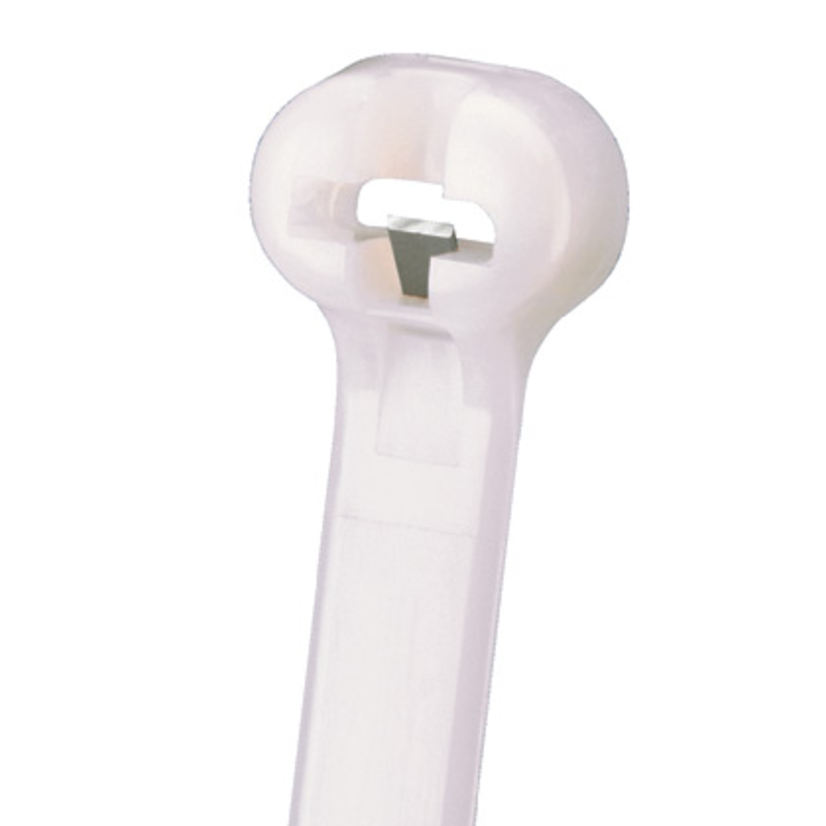

Panduit Dome-Top Barb Ty BT2S-M BT Series Standard Cross Section Cable Tie, 8 in L x 0.185 in W x 0.045 in THK, Nylon 6.6, Natural
Panduit BT2S-M
Panduit Dome-Top Barb Ty BT2S-M BT Series Standard Cross Section Cable Tie, 8 in L x 0.185 in W x 0.045 in THK, Nylon 6.6, NaturalIn Stock: 5000more info
|
In Stock: 5000more info
|
Product Description
Panduit Dome-Top Barb Ty, BT2S-M, Cable Tie, Standard Cross Section, Series: BT Series, 8 in Length, 0.185 in Width, 0.045 in Thickness, 2 in Diameter Bundle, Lock Mechanism: Locking, 222 N Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Attributes
Documents
Applications
Features
Specifications
Attributes
Bundle Diameter2 in
ColorNatural
Country of OriginCR
Length8 in
Lock MechanismLocking
ManufacturerPanduit
MaterialNylon 6.6
Mounting TypeHole
Package Height3.8 in
Package Length13.25 in
Package Volume585253 cu-in
Package Weight2.98 lb
Package Width12.1 IN
SeriesBT Series
Size of Cable1/2 in
Temperature Rating-76 to 185 deg F
Tensile Strength222 N
Thickness0.045 in
TypeStandard Cross Section
Type / StylePlenum Rated Standard
Width0.185 in
Documents
Applications
General Purpose and Indoor Applications
Features
- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head features smooth, round edges easy for installers to handle
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Parallel entry cable tie that threads like a belt 180 deg entry
- Low profile head avoids snags and reduces overall bundle size
- 35% lower head height than conventional 90 deg ties
- Parallel entry limits exposure to sharp edges and protects workers arms or hands
- Fully enclosed head for consistent strength
- Greater resistance to damage caused by ultraviolet light
- Unique design prevents wire and cable damage
- Outside teeth and smooth round edges protect cable jacket ideal for high vibration applications
- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head features smooth, round edges easy for installers to handle
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Marked|CSA Certified|UL 62275 File No. E56854
