Panasonic FV-11-15VKL1

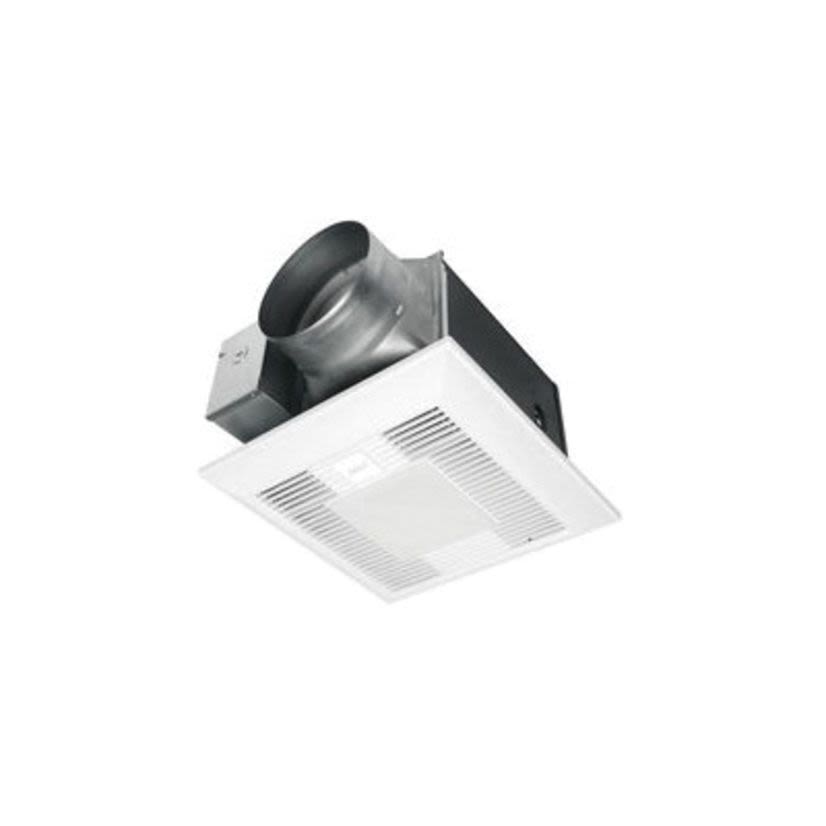

Panasonic WhisperGreen Select FV-11-15VKL1 Bath Ventilation Fan, 110/130/150 cfm, 6 in Dia Duct, 16.5 W, 120 VAC, 0.16 A, 0.3 Sones, Import
Panasonic FV-11-15VKL1
Panasonic WhisperGreen Select FV-11-15VKL1 Bath Ventilation Fan, 110/130/150 cfm, 6 in Dia Duct, 16.5 W, 120 VAC, 0.16 A, 0.3 Sones, ImportNon-stock product. Available to order - lead time may vary.
BrandPanasonic
MFG #FV-11-15VKL1
Werner Part #4024001
UPC885170179981
Non-stock product. Available to order - lead time may vary.
BrandPanasonic
MFG #FV-11-15VKL1
Werner Part #4024001
UPC885170179981
Product Description
Panasonic WhisperGreen Select Ventilation Fan, Bath, 110/130/150 cfm, 6 in Duct Dia, 120 VAC, 0.16 A, 60 Hz, 16.5 W, 0.3 Sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: Optional, Motion Sensing: Optional, White, Import
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Air Flow Rate110/130/150 cfm
ColorWhite
Country of OriginCN
Current/Amps0.16 A
Domestic/ImportImport
Duct Diameter6 in
Flow Rate110/130/150 cfm
Frequency Rating60 Hz
Grille Length13 in
Grille MaterialPolypropylene
Grille SizeL: 13 in x W 13 in
Grille Width13 in
HeightHousing: 7-3/8 in
Housing Length10-1/4 in
Housing MaterialGalvanized Steel
Housing Width10-1/4 in
Humidity SensingOptional
LengthHousing: 10-1/4 in
ManufacturerPanasonic
Motion SensingOptional
Mounting TypeCeiling
Package Height12 in
Package Length16.8 IN
Package TypeEACH
Package Weight14.8 lb
Package Width14.25 in
Sones0.3
TypeBath
Type / StyleBath
Voltage Rating120 V AC
Wattage Consumption16.5 W
WidthHousing: 10-1/4 in
Documents
Applications
Single Family, Manufactured Housing Multi-Family Hospitality, Assisted Living, Student Housing Renovation and Remodeling
Included
Flex-Z Fast Installation Bracket and 6 in Duct Adapter and Motion Sensor Cap
Warranty
3 Years All Parts, 6 Years DC Motor
Features
- Customizable, all-in-one fan and fan/LED light combinations
- Pick-A-Flow speed selector- one fan, you choose the cfm
- Unique plug 'N Play modules provide up to three value added features
- Revolutionary DC motor with SmartFlow technology ensures optimal cfm output
- Replaceable, GU24 base LED lamps provide warm, energy efficient illumination
- Flex-Z Fast bracket provides flexible, fast and easy installation
- Integrated dual 4 or 6 in duct adaptor (up to 110 cfm models)
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- Fits in 2 x 8 in construction
- Protected by UL class 2 power unit
- Includes a motion sensor cap for use as a cover when the motion sensor plug 'N Play module has not been selected
- 1016 Ohm-cm volume resistivity
- Single connection
- Round duct adapter
