Panduit UTP6AX10BU

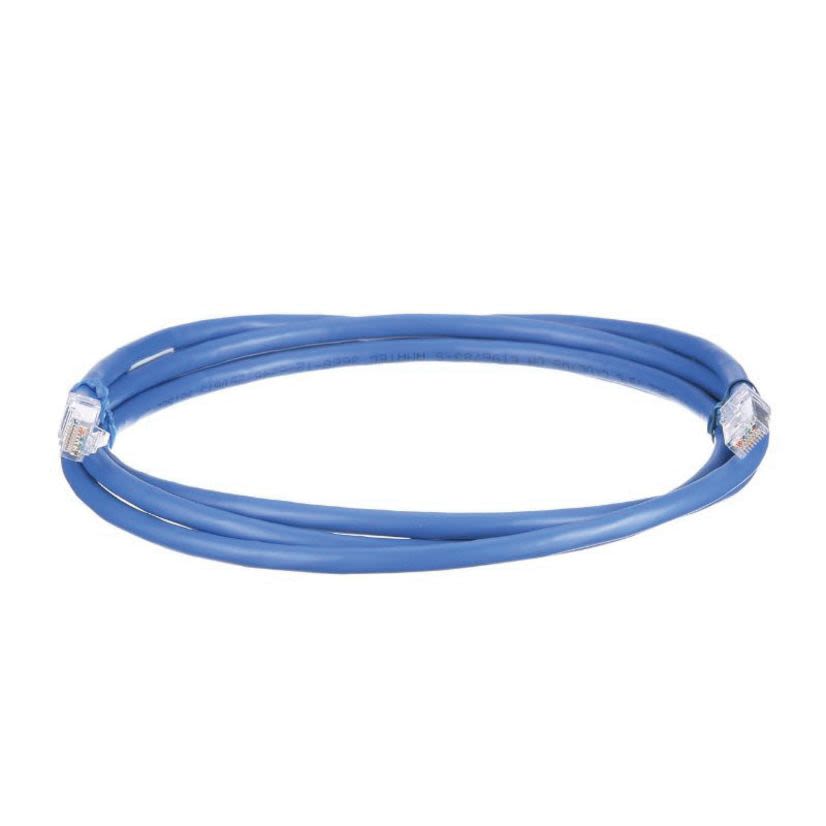

Panduit UTP6AX10BU UTP6AX 10Gig Unshielded Patch Cord, Cat 6A, 24 AWG Conductor Solid Copper Conductor, RJ45 Modular Plug Connector, 10 ft L Cord
Panduit UTP6AX10BU
Panduit UTP6AX10BU UTP6AX 10Gig Unshielded Patch Cord, Cat 6A, 24 AWG Conductor Solid Copper Conductor, RJ45 Modular Plug Connector, 10 ft L CordOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit, UTP6AX10BU, Patch Cord, 10Gig Unshielded, Series: UTP6AX, Category: Cat 6A, 24 AWG Conductor, Solid Copper Conductor, RJ45 Modular Plug Connector, 10 ft Cord Length, PVC Jacket, Blue Jacket, 14 to 140 deg F
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Category TypeCat 6a
ColorYellow
Conductor size24 AWG
Conductor TypeSolid Copper
Connector TypeRJ45 Modular Plug
Cord Length10 ft
Country of OriginSri Lanka
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPanduit
MaterialPC/ABS
Package TypePACKAGE
SeriesUTP6AX
Suitable For Use WithFiberRunner 4 x 4 Routing System
Temperature Rating14 to 140 deg F
Type10Gig Unshielded
Documents
Applications
10G Base-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Back-Bone Aggregation, Parallel Processing and High Speed Computing
Features
- 100% performance tested confidence that each patch cord delivers specified performance
- Superior headroom warranty provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design improved cable management in high density applications enabling easier installations
- Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
- Patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
- Slender strain relief boot provides easy access in high-density applications
- Robust construction rated to 2500 mating cycles
- Identification provides identification of performance level, length and quality control number for future traceability
- Variety of cable colors and lengths meets individual length and color-coding requirements for greater system flexibility
Specifications
ANSI/TIA-1096-A|ANSI/TIA-568.2-D Cat 6A|ARRA Compliant|Buy American Act Compliant|cULus Listed File No. E129886|IEC 60603-7|IEEE 802.3af/802.3at/802.3bt Type 3 and Type 4|RoHS Compliant|UL 1863
Warranty
Limited
