Panduit ISFCH6X04ATL-UG

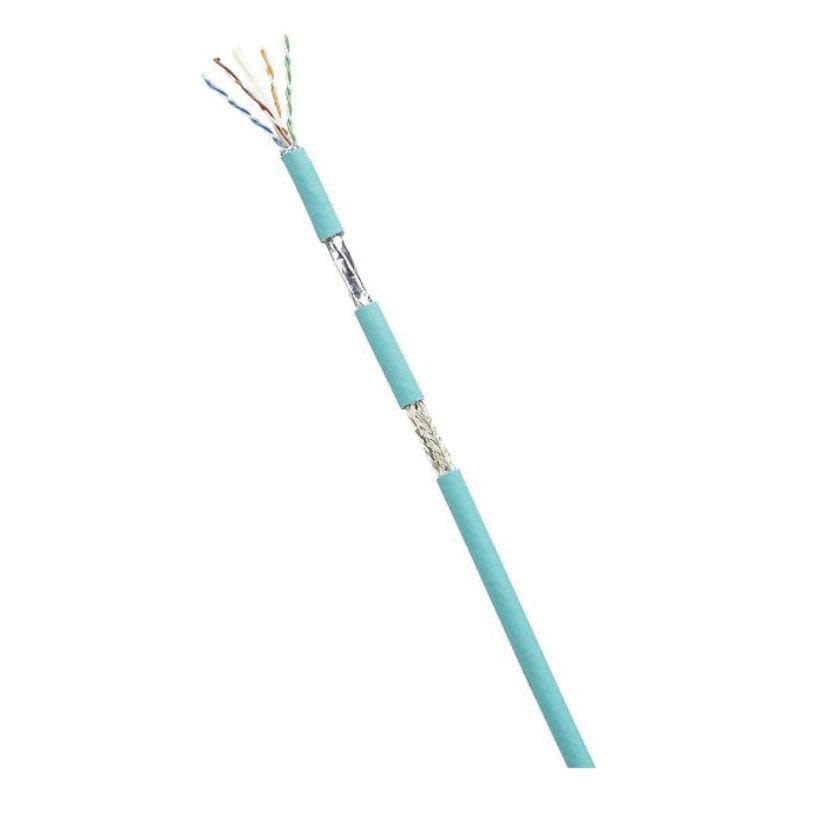

Panduit IndustrialNet ISFCH6X04ATL-UG Cat 6A Copper Cable, Reel Packaging, 80 V, (4) 24 AWG SF/UTP Stranded Copper Conductor, 1 ft L
Panduit ISFCH6X04ATL-UG
Panduit IndustrialNet ISFCH6X04ATL-UG Cat 6A Copper Cable, Reel Packaging, 80 V, (4) 24 AWG SF/UTP Stranded Copper Conductor, 1 ft LIn Stock: 4567more info
|
BrandPanduit
MFG #ISFCH6X04ATL-UG
Werner Part #4256450
UPC613056318694
In Stock: 4567more info
|
BrandPanduit
MFG #ISFCH6X04ATL-UG
Werner Part #4256450
UPC613056318694
Product Description
Panduit IndustrialNet Copper Cable, Cat 6A, Reel, 80 V, 4 Conductors, SF/UTP Stranded Copper Conductor, 24 AWG Conductor, 0.32 in Outside Dia, 1 ft Length, 24/7 Strands, UV, HDPE Insulation, Thermoplastic Elastomer, Teal, -40 to 176 deg F
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size24 AWG
Conductor TypeSF/UTP Stranded Copper
Country of OriginUS
Insulation MaterialHDPE
Jacket ColorTeal
Jacket MaterialThermoplastic Elastomer
ManufacturerPanduit
Number of Conductors4
Outside Diameter0.32 in
Packaging TypeReel
ResistanceUV
Strands24/7
Temperature Rating-40 to 176 deg F
TypeCat 6A
Voltage Rating80 V
Documents
Applications
10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (Gigabit Ethernet) , Harsh Environment and Industrial Applications
Features
- Shielded SF/UTP cable construction protects against environmental elements that can cause electrical performance failures, stranded conductors for high flex applications and ease of installation, cable jacket is oil, sunlight, weld splatter and abrasion-resistant for enhanced chemical resistance and mechanical performance
- High flex applications life cycle tested for robotic and c-track use
- Rated for panel or on-machine applications when the space is shared with 600 V high voltage power cables
Specifications
ANSI/TIA-568-C.2|IEC 61156-6|IEEE 802.3af/802.3at|RoHS Compliant|UL File No. 2463
