nVent HOFFMAN G521226G151

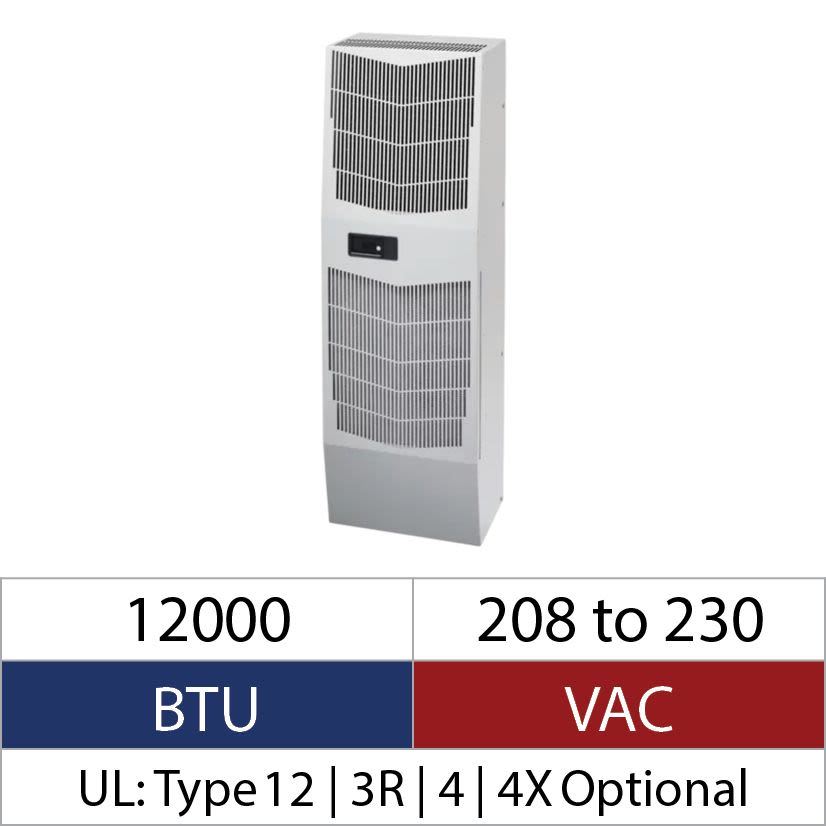

nVent HOFFMAN G521226G151 MCLG 1-Phase Indoor/Outdoor Enclosure Air Conditioner, 208 to 230 V AC, 9.1/10.6 to 9.5 A, 50/60 Hz, NEMA 3R/4/12/IP56 Enclosure, 12000 Btu/hr
nVent HOFFMAN G521226G151
nVent HOFFMAN G521226G151 MCLG 1-Phase Indoor/Outdoor Enclosure Air Conditioner, 208 to 230 V AC, 9.1/10.6 to 9.5 A, 50/60 Hz, NEMA 3R/4/12/IP56 Enclosure, 12000 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G521226G151
Werner Part #4436978
UPC783510211721
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G521226G151
Werner Part #4436978
UPC783510211721
Product Description
nVent HOFFMAN, G521226G151, Enclosure Air Conditioner, 1-Phase Indoor/Outdoor, Series: MCLG, 208 to 230 V AC, 9.1/10.6 to 9.5 A, 3500 W Power, 50/60 Hz Frequency, 12000 Btu/hr Capacity, NEMA 3R/4/12/IP56 Enclosure, Basic Mechanical Thermostat Control, Terminal Connection, -40 to 131 deg F, Flanged Mounting, Galvanized Sheet Metal, Light Gray, 52.69 in H x 17.12 in W x 11.66 in D Dimensions
Attributes
Documents
Applications
Features
Included
Attributes
BABA CompliantYes
Capacity Range12000 Btu/hr
ColorLight Gray
Connection TypeTerminal
Control TypeBasic Mechanical Thermostat
Country of OriginUS
Dimensions52.69 in H x 17.12 in W x 11.66 in D
Enclosure TypeNEMA 3R/4/12/IP56
Frequency Rating50/60 Hz
ManufacturernVent
MaterialGalvanized Sheet Metal
Nominal Voltage230 V
Operating Temperature-40 to 131 Ā°F
Package TypePIECE
Power Rating3500 W
SeriesMCLG
Temperature Rating-40 to 131 deg F
Thickness1 mm
Type1-Phase Indoor/Outdoor
Voltage Rating208 to 230 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Telecommunication Equipment, Waste Water Treatment Systems, Security and Defense System Applications
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes - Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
Included
Mounting Hardware, Gasket and User Manual
