nVent HOFFMAN G280426G150

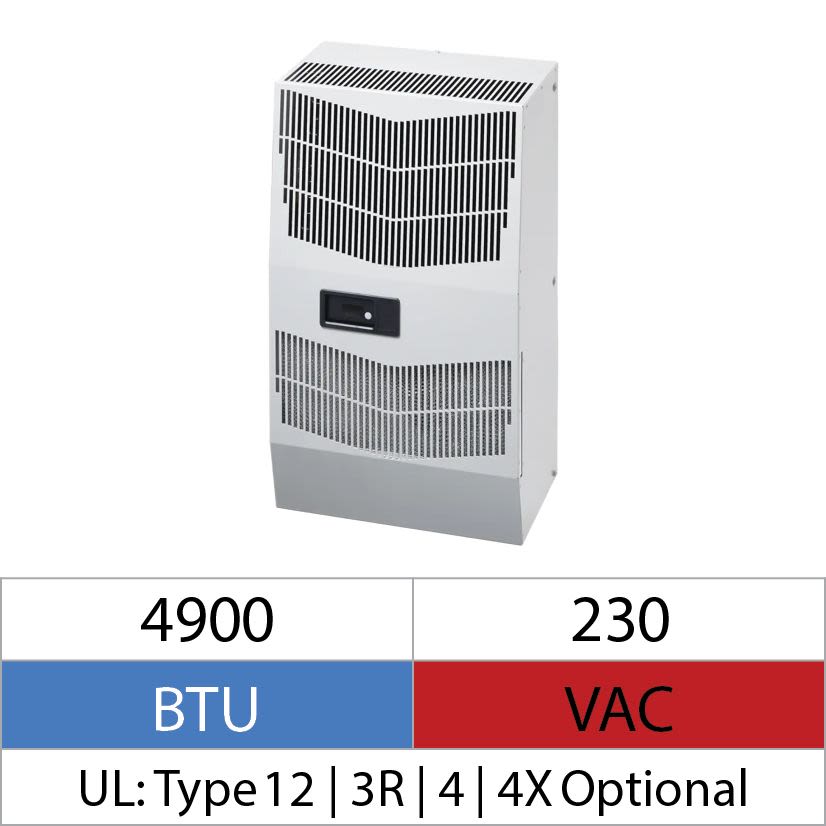

nVent HOFFMAN Spectracool G280426G150 MCLG 1-Phase Indoor Enclosure Air Conditioner With Heat Package, 230 V AC, 4.6/5.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 4900 Btu/hr
nVent HOFFMAN G280426G150
nVent HOFFMAN Spectracool G280426G150 MCLG 1-Phase Indoor Enclosure Air Conditioner With Heat Package, 230 V AC, 4.6/5.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 4900 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G280426G150
Werner Part #3965751
UPC783510209384
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G280426G150
Werner Part #3965751
UPC783510209384
Product Description
nVent HOFFMAN Spectracool Enclosure Air Conditioner, 1-Phase Indoor, Series: MCLG, 230 V AC, 4.6/5.8 A, 1435 W Power, 50/60 Hz Frequency, 4900 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, -40 to 55 deg C, Ceiling Mounting, Steel, Light Gray, 28.55 in H x 16.97 in W x 10.1 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
BTUs4900 Btu/hr
Capacity Range4900 Btu/hr
ColorLight Gray
Country of OriginUS
Dimensions28.55 in H x 16.97 in W x 10.1 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSteel
NEMA RatingNEMA 3R/4/12
Operating Temperature-171
Phase1
Power Rating1435 W
SeriesMCLG
Temperature Rating-40 to 55 deg C
Type1-Phase Indoor
UL ListedType 12, 3R, 4, 4X Optional
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Telecommunications Equipment, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include, Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
