nVent HOFFMAN CR290226G002

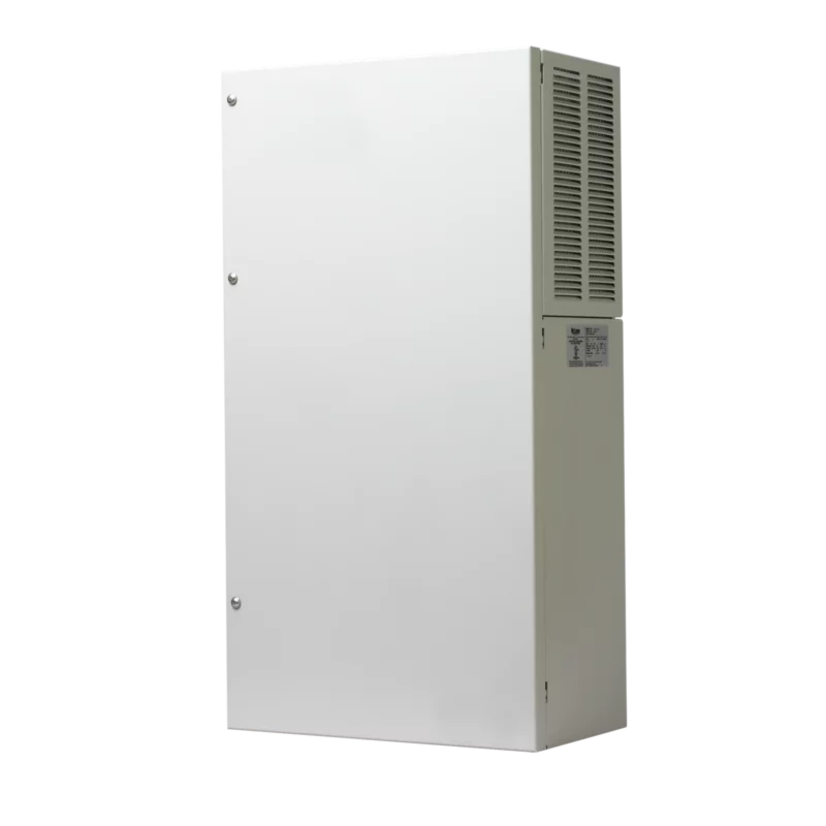

nVent HOFFMAN ProAir CR290226G002 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 230 V AC, 3.9/4.6 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2700 Btu/hr
nVent HOFFMAN CR290226G002
nVent HOFFMAN ProAir CR290226G002 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 230 V AC, 3.9/4.6 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2700 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290226G002
Werner Part #303521
UPC783510742706
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290226G002
Werner Part #303521
UPC783510742706
Product Description
nVent HOFFMAN ProAir Sealed Enclosure Air Conditioner, 1-Phase Indoor, Series: MCL, 230 V AC, 3.9/4.6 A, 791 W Power, 50/60 Hz Frequency, 2700 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Plug Connection, -40 to 131 deg F, Side Mounting, Steel, Light Gray, 29.5 in H x 15.75 in W x 8.63 in D Dimensions
Attributes
Documents
Applications
Features
Included
Attributes
BABA CompliantYes
BTUs2700 Btu/hr
Capacity Range2700 Btu/hr
ColorLight Gray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions29.5 in H x 15.75 in W x 8.63 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
Housing MaterialMild Steel
ManufacturernVent
MaterialSteel
Mounting TypeSurface Mounted
NEMA RatingNEMA 3R/4/12
Operating Temperature-171
Package Height32.5 IN
Package Length21 in
Package TypePIECE
Package Volume9555.84 cu-in
Package Weight103 lb
Package Width14 in
Phase1
Power Rating791 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type1-Phase Indoor
UL ListedType 12, 3R, 4, 4X Optional
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
Included
Mounting Hardware, Gasket and User Manual
