nVent HOFFMAN CR230216G015

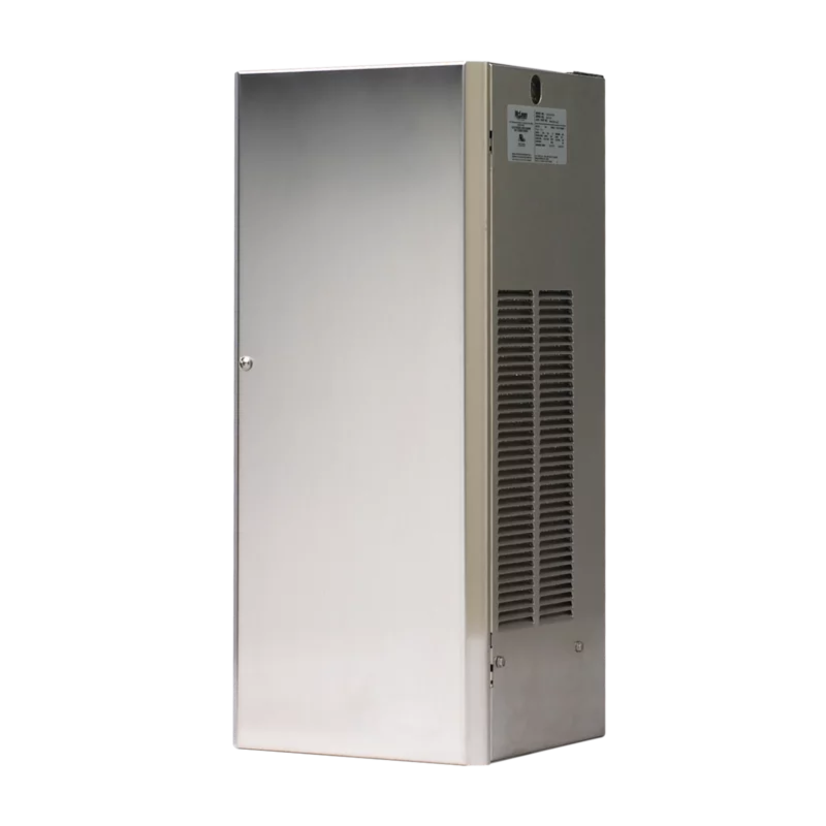

Hoffman ProAir CR230216G015 MCL Indoor/Outdoor/Corrosion Medium/Full Sealed Enclosure Air Conditioner, 115 V AC, 4.1/4.5 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 1600 Btu/hr
nVent HOFFMAN CR230216G015
Hoffman ProAir CR230216G015 MCL Indoor/Outdoor/Corrosion Medium/Full Sealed Enclosure Air Conditioner, 115 V AC, 4.1/4.5 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 1600 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR230216G015
Werner Part #36804
UPC783510321598
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR230216G015
Werner Part #36804
UPC783510321598
Product Description
Hoffman ProAir Sealed Enclosure Air Conditioner, Indoor/Outdoor/Corrosion Medium/Full, Series: MCL, 115 V AC, 4.1/4.5 A, 469 W, 50/60 Hz, 1600 Btu/hr Capacity, NEMA 3R/4/4X/12, Mechanical Thermostat Control, Plug, -40 to 131 deg F, Side Mount, 304 Stainless Steel, Light Gray, 23 in H x 10 in W x 8-3/4 in D
Attributes
Documents
Applications
Features
Included
Attributes
BABA CompliantYes
BTUs1600 Btu/hr
Capacity Range1600 Btu/hr
ColorLight Gray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions23 in H x 10 in W x 8-3/4 in D
Enclosure TypeNEMA 3R/4/4X/12
Frequency Rating50/60 Hz
Housing MaterialStainless Steel
ManufacturernVent
Material304 Stainless Steel
Mounting TypeSurface Mounted
NEMA RatingNEMA 4X/3R
Operating Temperature-171
Package TypePIECE
Power Rating469 W
SeriesMCL
Temperature Rating-40 to 131 deg F
TypeIndoor/Outdoor/Corrosion Medium/Full
UL ListedType 12, 3R, 4, 4X Optional
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
Included
Mounting Hardware, Gasket and User Manual
