NSi ISPB350-3

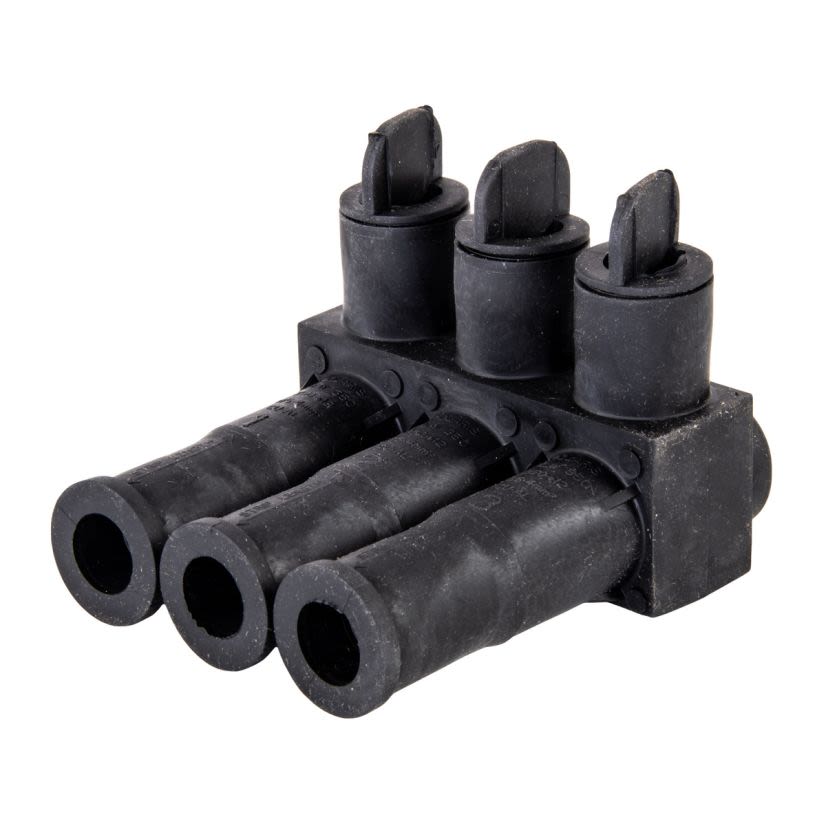

NSI Polaris ISPB350-3 ISPB Submersible Pedestal Connector, 12 AWG to 350 kcmil Aluminum/Copper Conductor, Plastisol
NSi ISPB350-3
NSI Polaris ISPB350-3 ISPB Submersible Pedestal Connector, 12 AWG to 350 kcmil Aluminum/Copper Conductor, PlastisolNon-stock product. Available to order - lead time may vary.
BrandNSi
MFG #ISPB350-3
Werner Part #3959855
UPC662381788955
Non-stock product. Available to order - lead time may vary.
BrandNSi
MFG #ISPB350-3
Werner Part #3959855
UPC662381788955
Product Description
NSI Polaris Submersible Pedestal Connector, Series: ISPB, Aluminum/Copper Conductor, 12 AWG to 350 kcmil Conductor, 600 V AC, 1 Pole, 3 Conductor, Class B and C Wire Type, 5/16 in Hex, -45 to 90 deg C, Plastisol, Black, 3.61 in L x 4.19 in W x 3.06 in H
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Conductor size12 AWG to 350 kcmil
Conductor TypeAluminum/Copper
Country of OriginUS
Dimensions3.61 in L x 4.19 in W x 3.06 in H
FinishBlack
ManufacturerNSi Industries
MaterialPlastisol
SeriesISPB
Temperature Rating-45 to 90 deg C
Type / StyleSubmersible Pedestal Connectors
Voltage Rating600 V AC
Documents
Applications
For wire termination
Warranty
1 Year
Features
- One-Side Wire Entry, Form secure connections between 3 conductors quickly using the single-side entry ports sized for wires between 350 MCM and 12 AWG
- Ergonomic Design, The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
- Pre-filled Oxide Inhibitor, All 3 single-side entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
Specifications
1 Pole, 3 Conductor, Class B and C Wire Type, 5/16 in Hex
