NSi IPLD600-6

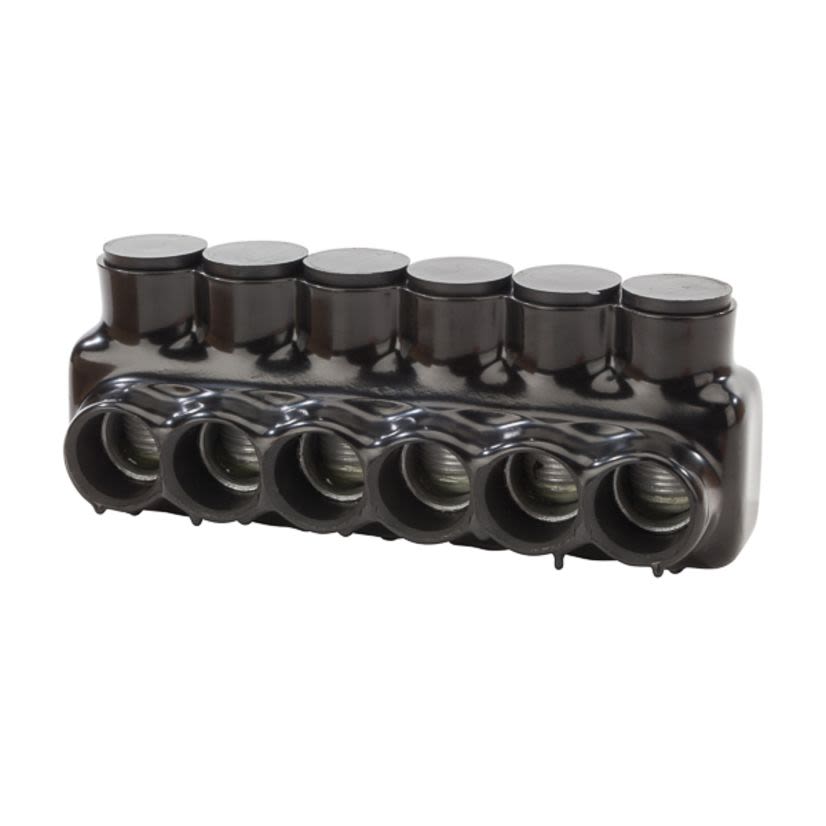

Polaris IPLD600-6 IPLD Double Sided Entry Multi-Tap Connector, 6 AWG to 600 kcmil Aluminum/Copper Conductor, Plastisol
NSi IPLD600-6
Polaris IPLD600-6 IPLD Double Sided Entry Multi-Tap Connector, 6 AWG to 600 kcmil Aluminum/Copper Conductor, PlastisolOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Polaris, IPLD600-6, Multi-Tap Connector, Double Sided Entry, Series: IPLD, Aluminum/Copper Conductor, 6 AWG to 600 kcmil Conductor, 600 V AC, Specifications: 1 Pole, 6 Conductor, Class B and C Wire Type, 5/16 in Hex, -45 to 75 deg C, Plastisol, Black, 8.45 in L x 2.96 in W x 3.03 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Conductor size6 AWG to 600 kcmil
Conductor TypeAluminum/Copper
Country of OriginUS
Dimensions8.45 in L x 2.96 in W x 3.03 in H
FinishBlack
ManufacturerNSi Industries
MaterialPlastisol
Package Length8.45 IN
Package TypeEACH
Package Weight2.15 lb
Package Width2.96 in
SeriesIPLD
Temperature Rating-45 to 75 deg C
TypeDouble Sided Entry
Type / StyleDouble Sided Entry
Voltage Rating600 V AC
Applications
For aluminum and copper cables and wire termination
Features
- Dual-Sided Wire Entry - Form secure connections between 6 conductors quickly using the double-side entry ports sized for wires between 600 MCM and 6 AWG
- Suitable for use on the line side of the service equipment
- Ergonomic Design - Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs - Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor - All 6 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Parallel Rated - This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
Specifications
1 Pole, 6 Conductor, Class B and C Wire Type, 5/16 in Hex
Warranty
1 Year
