NSi AL500-48

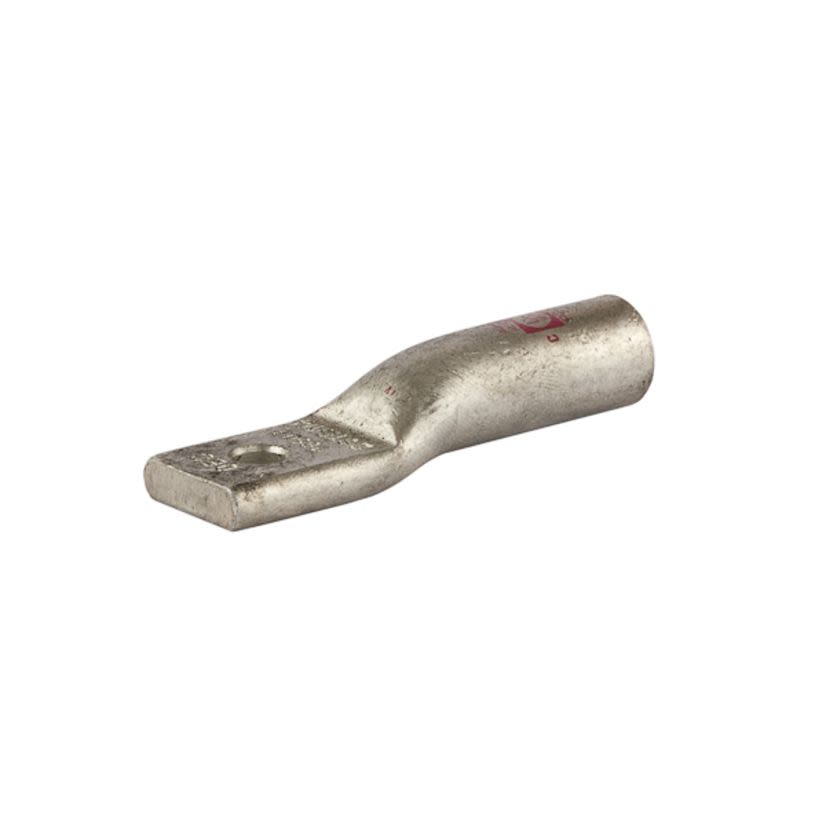

Polaris AL500-48 1-Hole Compression Lug, 500 kcmil Stranded Conductor, 1/2 in Stud, Aluminum
NSi AL500-48
Polaris AL500-48 1-Hole Compression Lug, 500 kcmil Stranded Conductor, 1/2 in Stud, AluminumNon-stock product. Available to order - lead time may vary.
BrandNSi
MFG #AL500-48
Werner Part #4164563
UPC662381030160
Non-stock product. Available to order - lead time may vary.
BrandNSi
MFG #AL500-48
Werner Part #4164563
UPC662381030160
Product Description
Polaris, AL500-48, Compression Lug, 1-Hole, Stranded Conductor, 500 kcmil Conductor, 600 V AC, 1/2 in Stud, 1.5 in L x 1.787in W x 0.468 in THK Tongue, 4.74 in Overall Length, Standard Barrel, 0.838 in ID x 1.31 in OD Barrel, 90 deg C, 1/2 in Mounting Hole, Aluminum, Pink, 1.78 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel Size0.838 in ID x 1.31 in OD
Barrel TypeStandard
ColorPink
Conductor size500 kcmil
Conductor TypeStranded
Country of OriginIN
Dimensions1.78 in W
ManufacturerNSi Industries
MaterialAluminum
Mounting Hole Type1/2 in
Overall Length4.74 in
Package Length4.7 IN
Package TypeEACH
Package Weight0.39 lb
Package Width1.75 in
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size1.5 in L x 1.787in W x 0.468 in THK
Type1-Hole
Type / Style1-Hole
Voltage Rating600 V AC
Applications
For splice, tap power connectors and terminate
Warranty
1 Year
Features
- High conductivity aluminum tubing and corrosive resistant tin-plated finish
- Die color-coded identification
- Dual rated for both copper and aluminum conductors
Specifications
Standards/Approvals: UL 486
