Woodhead 27W47

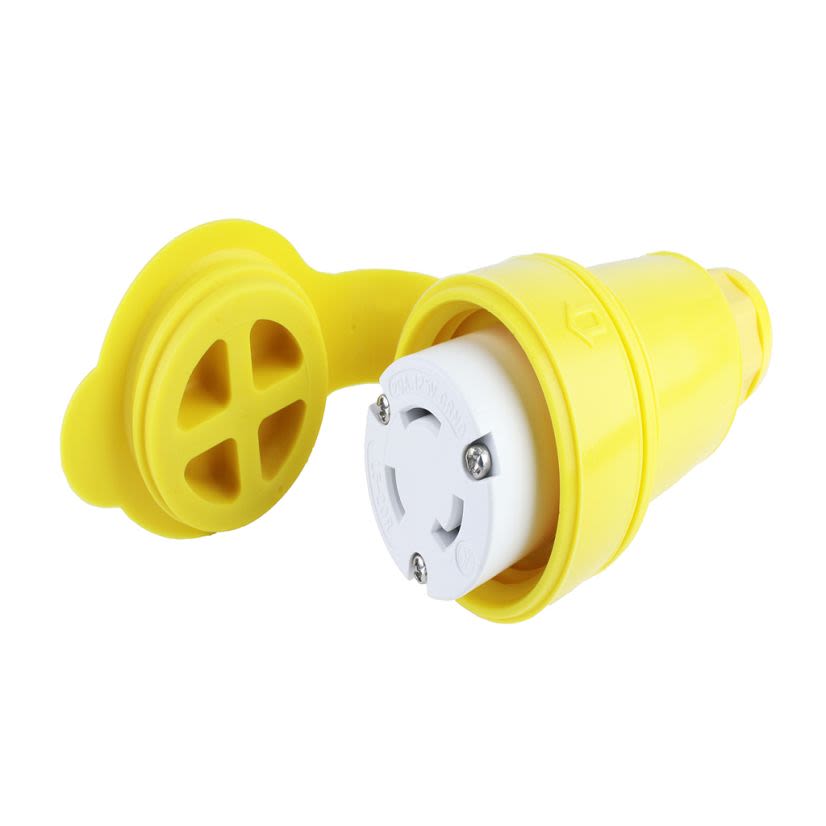

Woodhead Watertite 27W47 130147 Female Locking Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Woodhead 27W47
Woodhead Watertite 27W47 130147 Female Locking Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, YellowIn Stock: 13more info
|
BrandWoodhead
MFG #27W47
Werner Part #68263
UPC786788713119
In Stock: 13more info
|
BrandWoodhead
MFG #27W47
Werner Part #68263
UPC786788713119
Product Description
Woodhead Watertite Locking Blade Connector, Female, Series: 130147, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 1/3/4/4X/5/6/6P/12/L5-20C Rating, IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 3/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX Paracril OZO Rubber, Yellow, 2-1/2 in Dia x 4-3/4 in L Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorYellow
Country of OriginMX
Dimensions2-1/2 in Dia x 4-3/4 in L
ManufacturerMolex
MaterialNEoTEX Paracril OZO Rubber
NEMA RatingNEMA 1/3/4/4X/5/6/6P/12/L5-20C
Number of Poles2
Number of Wires3
Package TypePIECE
Package Weight1 lb
Series130147
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
TypeFemale
Voltage Rating125 V AC
Documents
Applications
Breweries, Dairies, Food, Beverage, Wastewater, Water Treatment and Wet Locations Applications
Features
- Multiple seal connector interface keeps out contaminants, resists vapor and water from high pressure washdown upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
- Without flip coverplate
