Meltric 89-98167

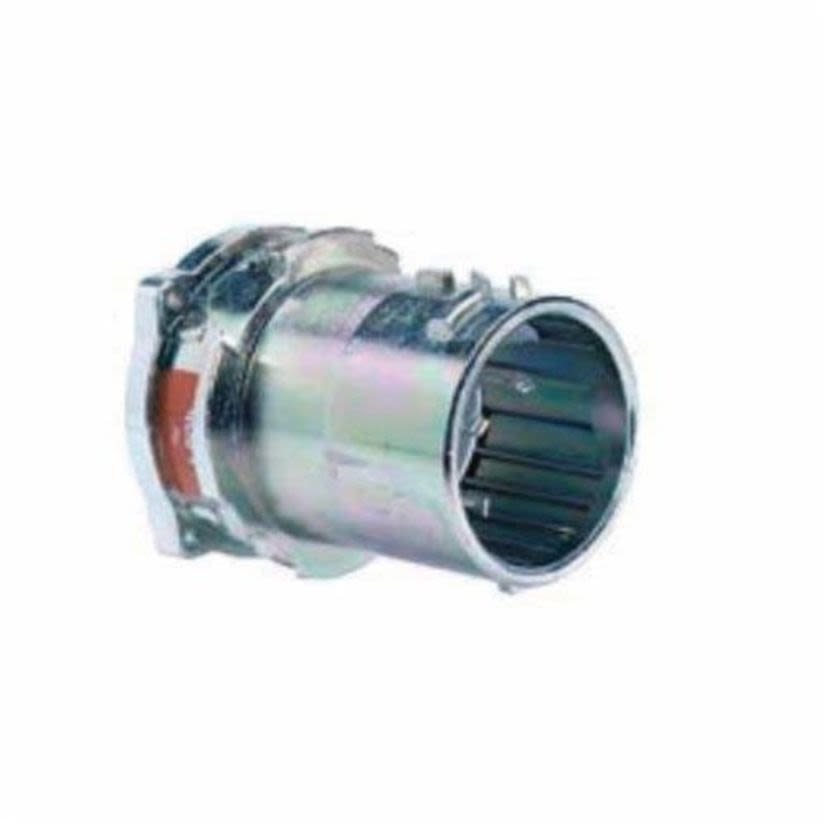

MELTRIC DECONTACTOR 89-98167 DB100 Switch Rated Male Inlet With Neutral, Ground, 120/127/208/220 V AC, 100 A, 4 Poles, 5 Wires, Blue
Meltric 89-98167
MELTRIC DECONTACTOR 89-98167 DB100 Switch Rated Male Inlet With Neutral, Ground, 120/127/208/220 V AC, 100 A, 4 Poles, 5 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #89-98167
Werner Part #3852769
UPC784474040860
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #89-98167
Werner Part #3852769
UPC784474040860
Product Description
MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DB100, 120/127/208/220 V AC, 100 A, 7-1/2 hp, 30 hp, 60 Hz Frequency, 4 Pole, 5 Wires, IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Metal, Blue, 4.53 in Dia x 4.74 in L Dimensions
Attributes
Applications
Warranty
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions4.53 in Dia x 4.74 in L
Enclosure TypeIP67
Frequency Rating60 Hz
Horsepower7-1/2 hp, 30 hp
ManufacturerMeltric Corporation
MaterialMetal
Number of Poles4
Number of Wires5
SeriesDB100
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating120/127/208/220 V AC
Applications
Motors and Inductive Loads with Frequent Make and Break Requirements and Harsh Environments
Warranty
5 Years
Features
- Switch and hp rated
- 100 kA short circuit rated
- Up to 4 auxiliary contacts
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lockout tagout provisions allows plug or receptacle to be easily locked out and tagged
- 1/0 to 2/0 AWG wiring capacity
- 7-1/2 hp at 120 VAC, 15 hp at 240 VAC 1-phase, 30 hp at 208/240 VAC, 60 hp at 480/600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|CSA 182.1|CE Certified|NOM Certified|IEC Certified|NFPA 70E
