Meltric 63-68073

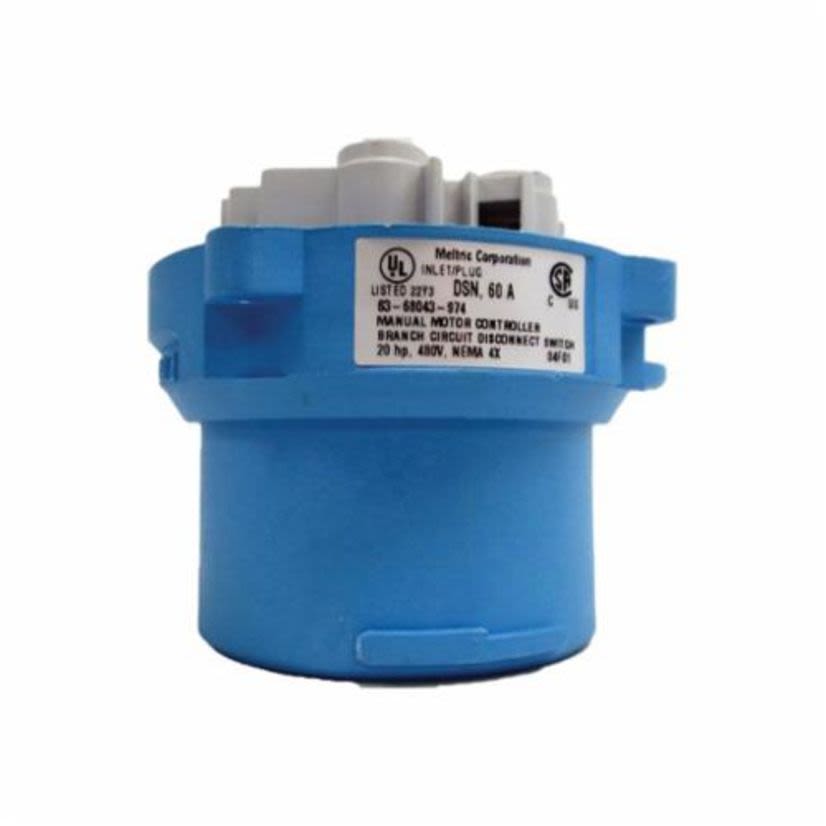

MELTRIC DECONTACTOR 63-68073 DSN60 Switch Rated Male Inlet With Ground, 110/125/220/250 V AC, 60 A, 3 Poles, 4 Wires, Blue
Meltric 63-68073
MELTRIC DECONTACTOR 63-68073 DSN60 Switch Rated Male Inlet With Ground, 110/125/220/250 V AC, 60 A, 3 Poles, 4 Wires, BlueIn Stock: 6more info
|
BrandMeltric
MFG #63-68073
Werner Part #2376479
UPC784474546461
In Stock: 6more info
|
BrandMeltric
MFG #63-68073
Werner Part #2376479
UPC784474546461
Product Description
MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DSN60, 110/125/220/250 V AC, 60 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.07 in Dia x 2.13 in L Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorBlue
Country of OriginUS
Dimensions3.07 in Dia x 2.13 in L
Enclosure TypeIP66/IP67/IP69K
Frequency Rating60 Hz
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 4X
Number of Poles3
Number of Wires4
Package Type1/BX
SeriesDSN60
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating110/125/220/250 V AC
Documents
Applications
Wet or Washdown Environments, Plug and Play Electrical Connections Applications
Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 12 to 4 AWG wiring capacity, polarity 3-pole, ground
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA 182.1|CE Marked|NOM Certified|IEC Certified|NFPA 70E
Warranty
5 years
