Meltric 63-14072

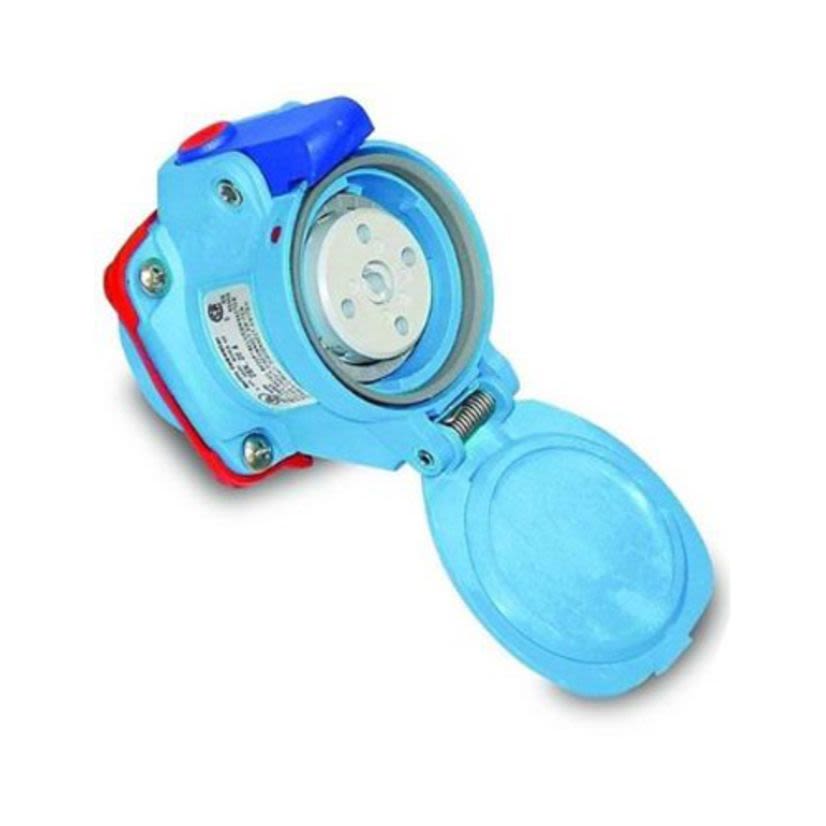

MELTRIC DECONTACTOR 63-14072 DSN20 1/3-Phase Switch Rated Female Receptacle With Ground, 110/125/220/250 V AC, 20 A, 2 Poles, 3 Wires, Blue
Meltric 63-14072
MELTRIC DECONTACTOR 63-14072 DSN20 1/3-Phase Switch Rated Female Receptacle With Ground, 110/125/220/250 V AC, 20 A, 2 Poles, 3 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #63-14072
Werner Part #3832736
UPC784474546638
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #63-14072
Werner Part #3832736
UPC784474546638
Product Description
MELTRIC DECONTACTOR Female Receptacle, 1/3-Phase Switch Rated, Series: DSN20, 110/125/220/250 V AC, 20 A, 1/2 hp, 1-1/2 hp, 2 hp, 5 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.03 in H x 2.2 in W x 3.15 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions3.03 in H x 2.2 in W x 3.15 in D
Enclosure TypeIP66/IP67/IP69K
Frequency Rating60 Hz
Horsepower1/2 hp, 1-1/2 hp, 2 hp, 5 hp
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 4X
Number of Poles2
Number of Wires3
Package Type1/BX
Package Weight0.4 lb
SeriesDSN20
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
Type1/3-Phase Switch Rated
Type / Style1/3-Phase Switch Rated
Voltage Rating110/125/220/250 V AC
Documents
Applications
For wet or washdown environments, plug and play electrical connections
Features
- Switch and horsepower rated (AC only
- 100 kA short circuit rated withstand testing was performed with RK1 current limiting fuses sized at 400 PEC of the highest full load motor ampacity associated with the devices hp rating
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides additional protection from harsh environments
- Off button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 1/2 hp at 120 VAC, 1-1/2 hp at 240 VAC 1-phase, 2 hp at 208/240 VAC, 5 hp at 480/600 VAC 3-phase horsepower rating
- Switch ratings (AC only branch circuit and motor circuit disconnect switching
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA 182.1|CE Marked|IEC Certified
