Meltric 49-34043

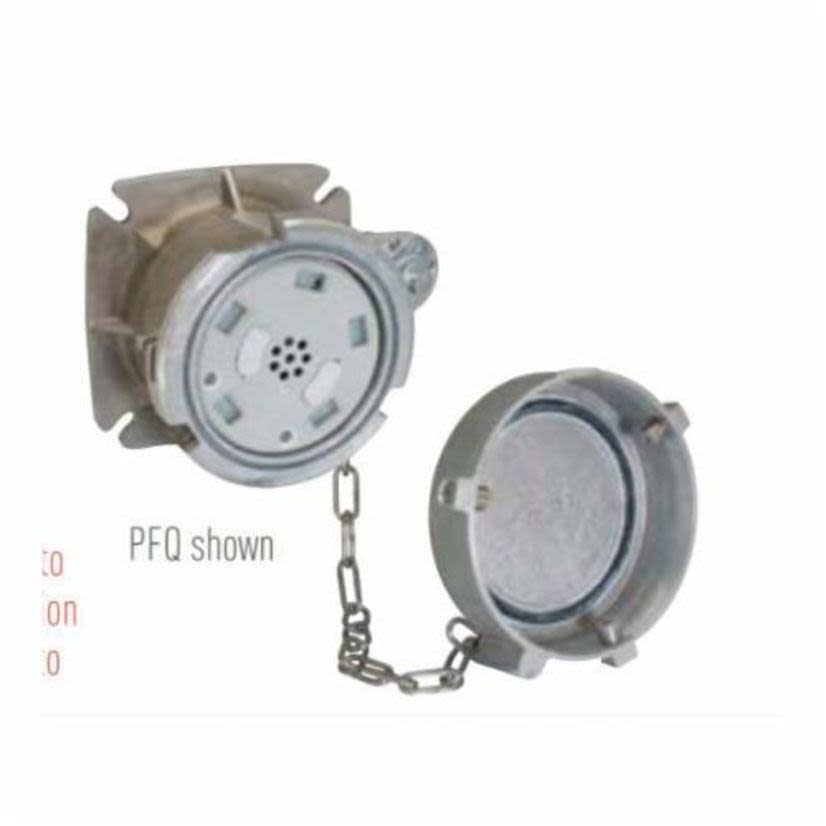

MELTRIC DECONTACTOR 49-34043 PF300 High Ampacity Female Receptacle With Ground, Cap, (4) Pilot Contacts, 255/277/440/480 V AC, 300 A, 3 Poles, 4 Wires, Gray
Meltric 49-34043
MELTRIC DECONTACTOR 49-34043 PF300 High Ampacity Female Receptacle With Ground, Cap, (4) Pilot Contacts, 255/277/440/480 V AC, 300 A, 3 Poles, 4 Wires, GrayNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #49-34043
Werner Part #4003753
UPC784474575706
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #49-34043
Werner Part #4003753
UPC784474575706
Product Description
MELTRIC DECONTACTOR Female Receptacle, High Ampacity, Series: PF300, 255/277/440/480 V AC, 300 A, 60 Hz, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Lug/Screw Terminal, Metal, Gray, 12.21 in Dia x 9.84 in L
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginUS
Dimensions12.21 in Dia x 9.84 in L
Enclosure TypeIP66/IP67
Frequency Rating60 Hz
ManufacturerMeltric Corporation
MaterialMetal
Number of Poles3
Number of Wires4
Package Type1/BX
Package Weight32.21 lb
SeriesPF300
Temperature Rating-40 to 140 deg F
Terminal TypeLug/Screw
TypeHigh Ampacity
Type / StyleHigh Ampacity
Voltage Rating255/277/440/480 V AC
Applications
Mining, Petroleum Platforms, Ship to Shore, Power Generation System, Shipyard and Other Similar Harsh Environments
Features
- Durable in harsh environments
- Safety features provide maximum protection
- Easy plug insertion and removal
- Safety shutter protects recessed female contacts and inhibits user access to live parts
- Mechanical locking system ensures safety and water tightness
- Mechanical lock secures the inlet to the receptacle and engages the auxiliary pilot contacts
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA 182.1
