Meltric 33-18043-972-4X

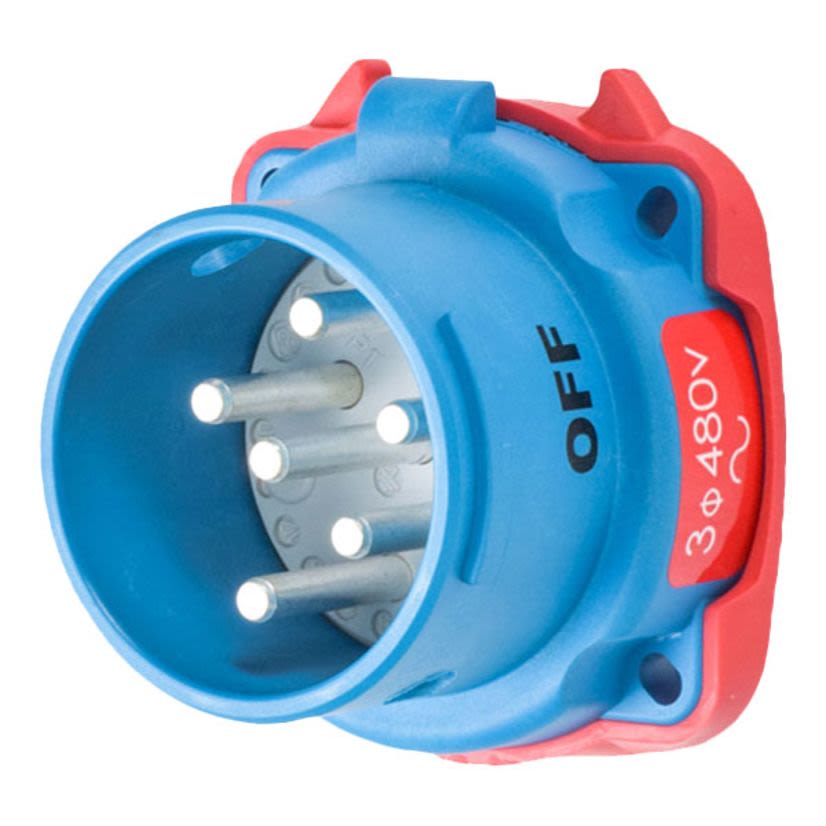

MELTRIC DECONTACTOR 33-18043-972-4X DS20 Switch Rated Male Inlet With Ground, (2) Auxiliary/Pilot Contacts, 255/277/440/480 V AC, 20 A, 3 Poles, 4 Wires, Blue
Meltric 33-18043-972-4X
MELTRIC DECONTACTOR 33-18043-972-4X DS20 Switch Rated Male Inlet With Ground, (2) Auxiliary/Pilot Contacts, 255/277/440/480 V AC, 20 A, 3 Poles, 4 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #33-18043-972-4X
Werner Part #3853691
UPC784474644730
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #33-18043-972-4X
Werner Part #3853691
UPC784474644730
Product Description
MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DS20, 255/277/440/480 V AC, 20 A, 7-1/2 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.6 in Dia x 2.55 in L Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions2.6 in Dia x 2.55 in L
Enclosure TypeIP54/IP55
Frequency Rating60 Hz
Horsepower7-1/2 hp
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 4X
Number of Poles3
Number of Wires4
Package Type1/BX
SeriesDS20
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeSwitch Rated
Type / StyleSwitch Rated
Voltage Rating255/277/440/480 V AC
Applications
Heavy Industry and High Amperage Equipment Applications
Features
- Switch and hp rated (AC only)
- 65 to 100 kA short circuit rated
- Amperage rating up to 200 A
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 3/4 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 20 hp at 208 VAC, 5 hp at 240 VAC, 7-1/2 hp at 480 VAC, 10 hp at 600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1
