Meltric 31-38247-K04

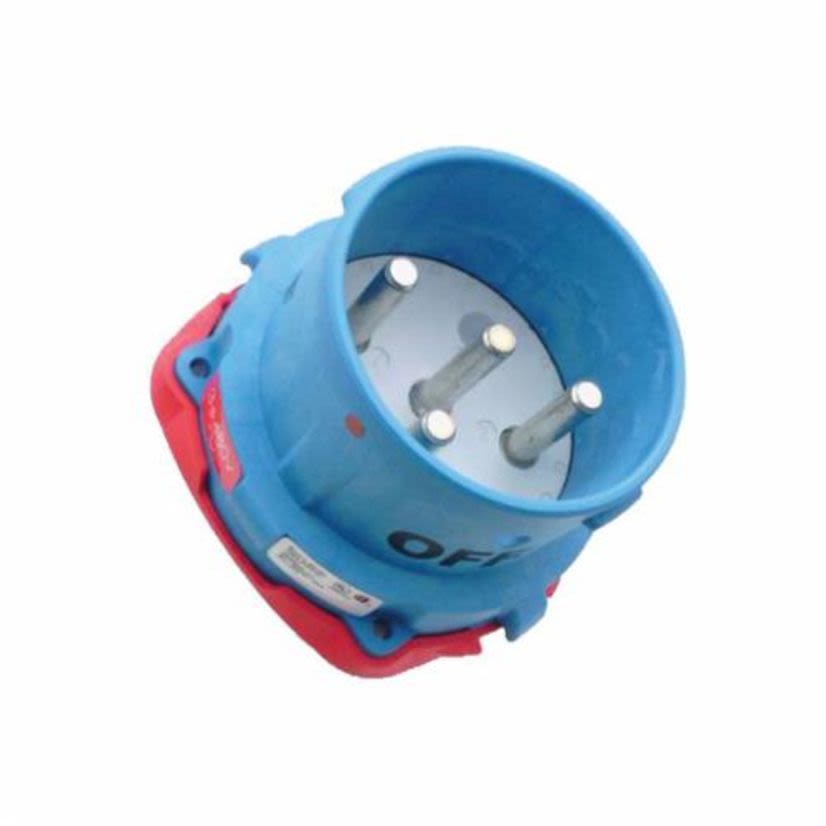

MELTRIC 31-38247-K04 DR50 Standard Duty Male Inlet With Neutral, Ground, 255/277/440/480 V AC, 50 A, 4 Poles, 5 Wires, Blue
Meltric 31-38247-K04
MELTRIC 31-38247-K04 DR50 Standard Duty Male Inlet With Neutral, Ground, 255/277/440/480 V AC, 50 A, 4 Poles, 5 Wires, BlueNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #31-38247-K04
Werner Part #3764968
UPC784474619158
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #31-38247-K04
Werner Part #3764968
UPC784474619158
Product Description
MELTRIC Male Inlet, Standard Duty, Series: DR50, 255/277/440/480 V AC, 50 A, 60 Hz Frequency, 4 Pole, 5 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.07 in Dia x 2.05 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions3.07 in Dia x 2.05 in L
Enclosure TypeIP54/IP55
Frequency Rating60 Hz
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingNEMA 3R
Number of Poles4
Number of Wires5
Package Type1/BX
SeriesDR50
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
TypeStandard Duty
Type / StyleStandard Duty
Voltage Rating255/277/440/480 V AC
Applications
For applications up to 400 A
Warranty
5 Years
Features
- High amperage capacity
- Up to 6 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 100 kA short circuit rated
- 14 to 6 AWG wiring capacity
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA 182.1|CE Certified|IEC Certified
