Meltric 22-38043

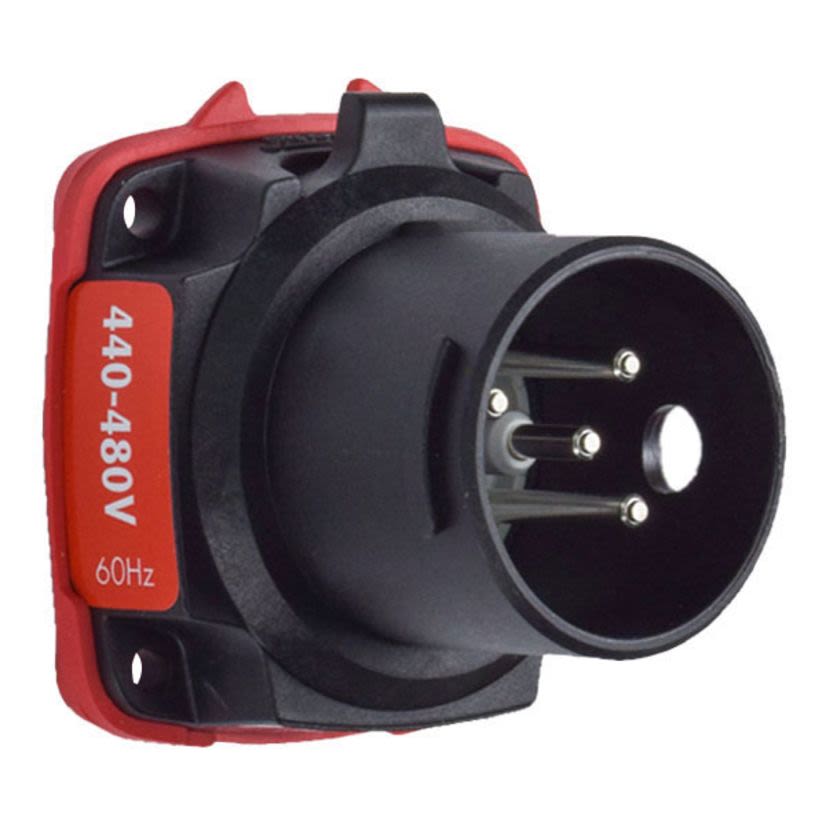

MELTRIC DECONTACTOR 22-38043 DXN30 Male Inlet With Ground, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, Black
Meltric 22-38043
MELTRIC DECONTACTOR 22-38043 DXN30 Male Inlet With Ground, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #22-38043
Werner Part #3775485
UPC784474609586
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #22-38043
Werner Part #3775485
UPC784474609586
Product Description
MELTRIC DECONTACTOR Male Inlet, Series: DXN30, 255/277/440/480 V AC, 30 A, 5 hp, 60 Hz Frequency, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.64 in Dia x 1.97 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions2.64 in Dia x 1.97 in L
Enclosure TypeIP66/IP67
Frequency Rating60 Hz
Horsepower5 hp
ManufacturerMeltric Corporation
MaterialPolyester
Number of Poles3
Number of Wires4
Package Type1/BX
SeriesDXN30
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
Type / StyleInlet
Voltage Rating255/277/440/480 V AC
Applications
For use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern
Warranty
5 years
Features
- Easy to handle due to compact, lightweight design
- CSA, ATEX and IECEx rated for use in zone 1 and 2 (gas) and zone 21 and 22 (dust)
- Pushbutton pawl/OFF button provides quick, safe and easy current interruption
- Spring loaded butt style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Explosionproof arc chamber withstands internal pressure due to gas/dust ignited by arcing and isolates it from the outside environment
- Explosionproof flame path dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere
- 14 to 6 AWG wiring capacity, polarity 3-pole, ground
- 1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 5 hp at 480 VAC, 7-1/2 hp at 600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|ATEX Compliant|IECEx Certified
