Meltric 22-34043-972

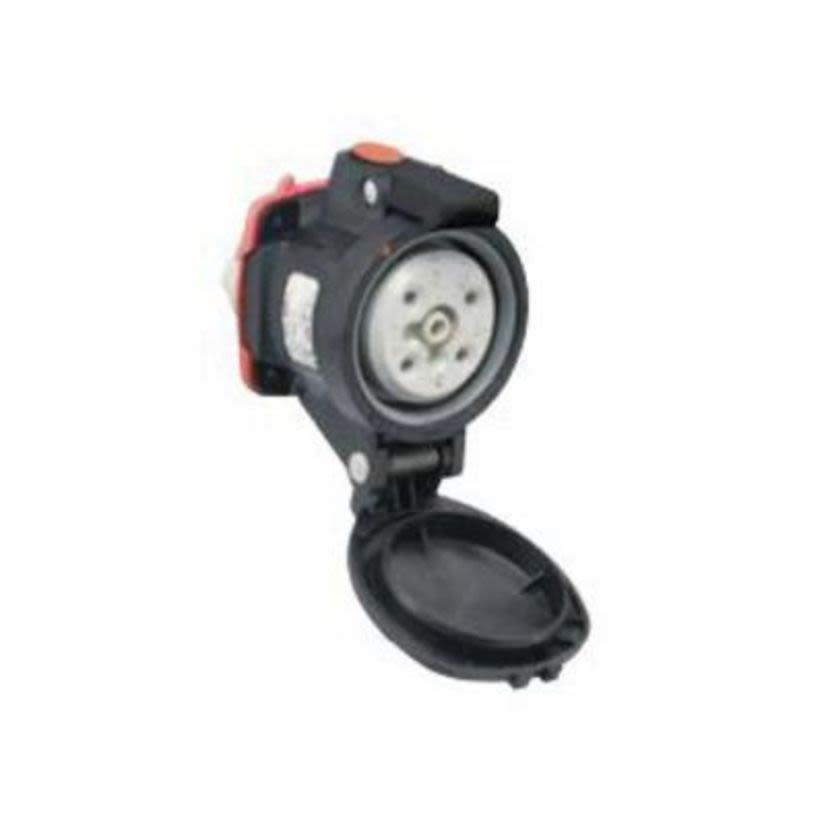

MELTRIC DECONTACTOR 22-34043-972 DXN30 Female Receptacle With Ground, (2) Auxiliary/Pilot Contacts, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, Black
Meltric 22-34043-972
MELTRIC DECONTACTOR 22-34043-972 DXN30 Female Receptacle With Ground, (2) Auxiliary/Pilot Contacts, 255/277/440/480 V AC, 30 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #22-34043-972
Werner Part #4137769
UPC784474609906
Non-stock product. Available to order - lead time may vary.
BrandMeltric
MFG #22-34043-972
Werner Part #4137769
UPC784474609906
Product Description
MELTRIC DECONTACTOR Female Receptacle, Series: 22-34043-972 DXN30, 255/277/440/480 V AC, 30 A, 5 hp, 60 Hz, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.87 in Dia x 3.2 in L
Attributes
Applications
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions2.87 in Dia x 3.2 in L
Enclosure TypeIP66/IP67
Frequency Rating60 Hz
Horsepower5 hp
ManufacturerMeltric Corporation
MaterialPolyester
NEMA RatingIP66/IP67
Number of Poles3
Number of Wires4
Package Type1/BX
Package Weight0.98 lb
SeriesDXN30
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
Type / StyleReceptacle
Voltage Rating255/277/440/480 V AC
Applications
For use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern
Features
- Easy to handle due to compact, lightweight design
- CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
- Hazardous location termination areas includes enhanced creepage and clearance distances and specially designed terminals to ensure perfect and permanent clamping
- Self-extinguishing, non-static, material provides outstanding resistance to mechanical abuse and chemicals
- When closed, the lid maintains IP66+IP67 protection for the receptacle after removal of the plug
- 1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 5 hp at 480 VAC, 7-1/2 hp at 600 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|ATEX Certified|IECEx Certified
