Meltric 22-18073

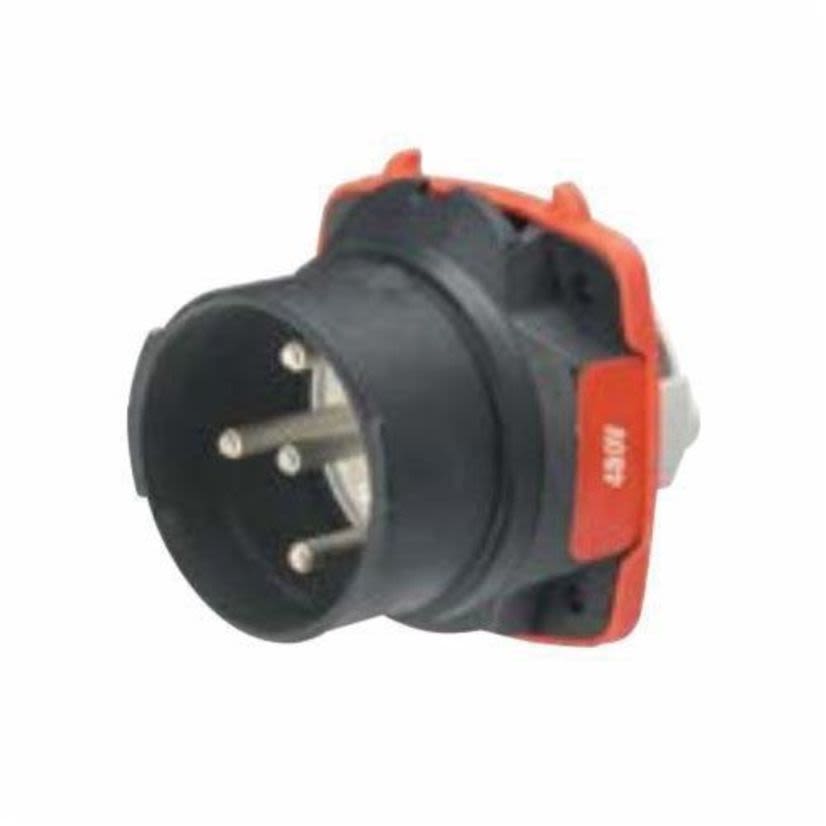

MELTRIC DECONTACTOR 22-18073 DXN20 Male Inlet With Ground, 110/125/220/250 V AC, 20 A, 3 Poles, 4 Wires, Black
Meltric 22-18073
MELTRIC DECONTACTOR 22-18073 DXN20 Male Inlet With Ground, 110/125/220/250 V AC, 20 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
MELTRIC DECONTACTOR Male Inlet, Series: DXN20, 110/125/220/250 V AC, 20 A, 60 Hz Frequency, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.24 in Dia x 1.97 in L Dimensions
Attributes
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions2.24 in Dia x 1.97 in L
Enclosure TypeIP66/IP67
Frequency Rating60 Hz
ManufacturerMeltric Corporation
MaterialPolyester
Number of Poles3
Number of Wires4
Package Type1/BX
Package Weight0.11 lb
SeriesDXN20
Temperature Rating-40 to 140 deg F
Terminal TypeScrew
Type / StyleInlet
Voltage Rating110/125/220/250 V AC
Applications
For use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern
Warranty
5 Years
Features
- Easy to handle due to compact, lightweight design
- CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
- Pushbutton pawl/OFF button provides quick, safe and easy current interruption
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Explosion proof arc chamber withstands internal pressure due to gas/dust ignited by arcing and isolates it from the outside environment
- Explosion proof flame path dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere
- 20 to 10 AWG wiring capacity
- 1/4 hp at 120 VAC 1-phase, 1 hp at 240 VAC, 3 hp at 480 VAC 3-phase horsepower rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|ATEX Certified|IECEx Certified
