Maxis 58120101

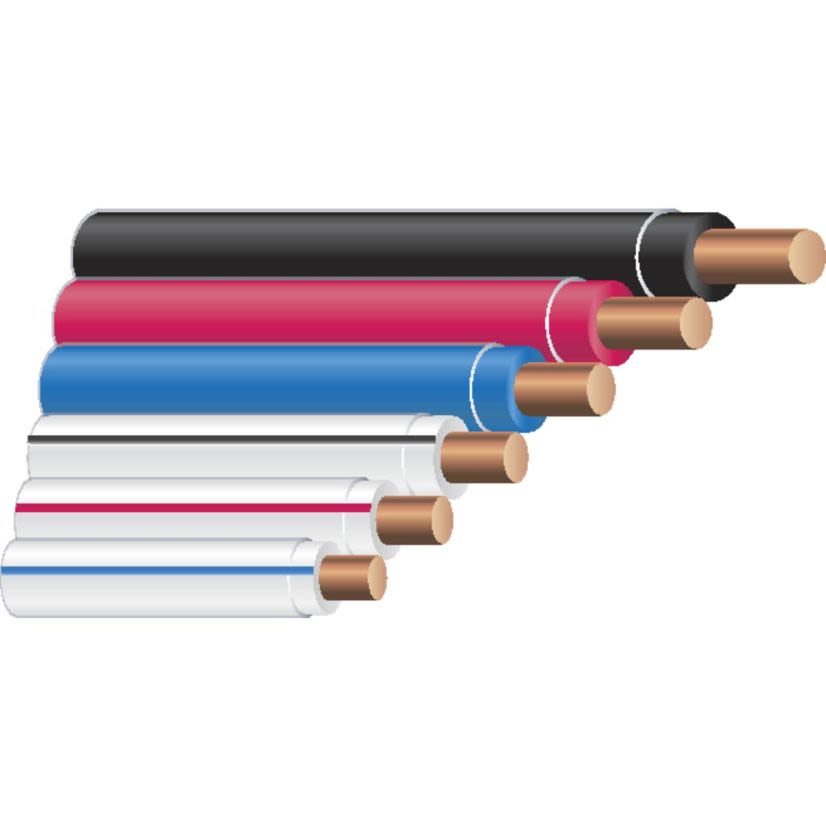

Southwire SIMpull WireBARREL 58120101 Type THHN Building Wire, 600 V AC, (6) 10 AWG Stranded Copper Conductor, 2500 ft L, Black/Blue/Red/White/Black/Red/Blue
Maxis 58120101
Southwire SIMpull WireBARREL 58120101 Type THHN Building Wire, 600 V AC, (6) 10 AWG Stranded Copper Conductor, 2500 ft L, Black/Blue/Red/White/Black/Red/BlueNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Southwire SIMpull WireBARREL Building Wire, Type THHN, 600 V AC, 30 A, 6 Conductors, Stranded Copper Conductor, 10 AWG Conductor, 161 mil Outside Dia, 2500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Black/Blue/Red/White/Black/Red/Blue Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Attributes
Conductor size10 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorBlack/Blue/Red/White/Black/Red/Blue
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors6
Outside Diameter161 mil
Strands19
Temperature Rating90 deg C
TypeType THHN
Voltage Rating600 V AC
Applications
For 3-circuit home run multiples
Warranty
1 Year
Features
- Barrellel technology is the paralleling of multiple branch circuit conductors into the WireBARREL package
- No binding or twisting and no reels or spools
- 3-phase, 3-neutral and no ground wire
- THWN- Wet locations not to exceed 75 C or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
