Littelfuse LLSRK01.8ID

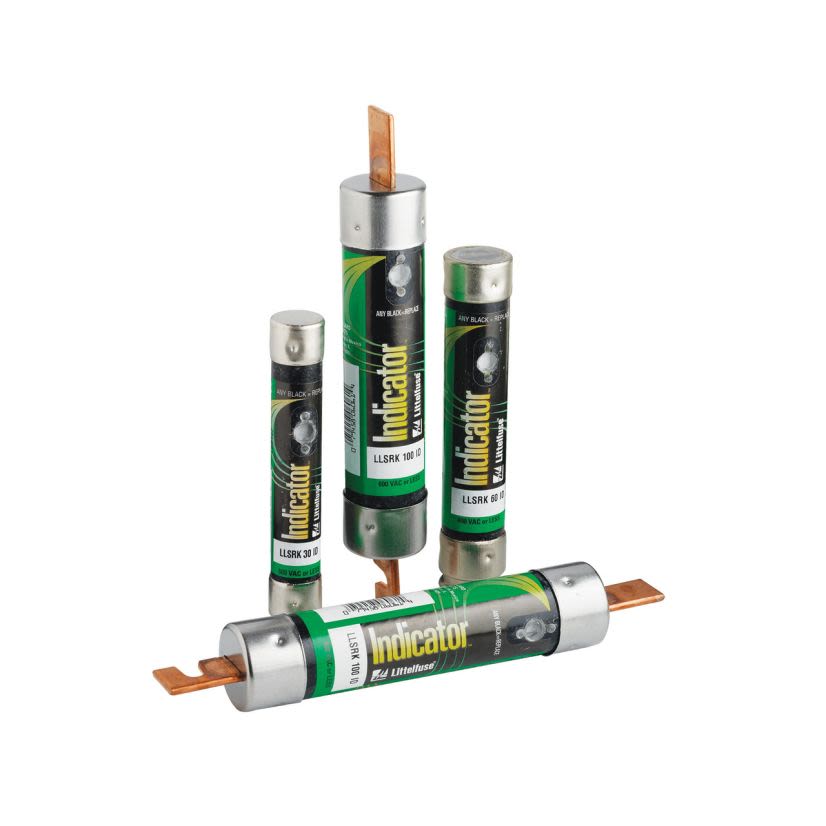

Littelfuse POWR-GARD LLSRK01.8ID Current Limiting Time Delay Fuse, 1.8 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse LLSRK01.8ID
Littelfuse POWR-GARD LLSRK01.8ID Current Limiting Time Delay Fuse, 1.8 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK1 Class, Cartridge BodyNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LLSRK01.8ID
Werner Part #4253856
UPC079458055078
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LLSRK01.8ID
Werner Part #4253856
UPC079458055078
Product Description
Littelfuse POWR-GARD Time Delay Fuse, Current Limiting, Series: LLSRK, Indicating, 1.8 A, 600 V AC/300 V DC, 200/20 kA Interrupt, Class: RK1, Ferrule Terminal, Holder Mounting, Cartridge Body, Dual Element, Fiberglass, 13/16 in Dia x 5 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size13/16 in Dia x 5 in L
Body TypeCartridge
ClassRK1
Country of OriginMX
ElementDual
Indicating/Non-IndicatingIndicating
Interrupt Rating200/20 kA
ManufacturerLittelfuse
MaterialFiberglass
Mounting TypeHolder
Package Height1.75 in
Package Length5.25 in
Package TypeEACH
Package Weight1.81 lb
Package Width4.25 in
SeriesLLSRK
Terminal TypeFerrule
Voltage Rating600 V AC/300 V DC
Documents
Applications
All General Purpose Circuits, Motors, Transformers and Safety Upgrades Applications
Features
- POWR-PRO performance
- IEC type 2 "no damage" protection to IEC and NEMA type motor starters
- This robust design withstands repeated surges within rated time delay without opening needlessly, eliminating downtime caused by power surges or equipment demands
- Reduce down time the indicating window of the LLSRK_ID immediately identifies the open fuse, if the window is dark, the fuse has opened, It's that simple, maintenance personnel can immediately determine that there is an open fuse
- Reduce fuse inventory the superior performance of the LLSRK_ID allows it to be used in a variety of applications, thus decreasing fuse inventory
- Reduce nuisance opening - indicator fuses offer superior time delay and cycling characteristics, which can lengthen fuse life
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
- Blown fuse indicator assembly
- Granular quartz filling
- Plated end caps
- Precision formed short circuit element
- Fiberglass reinforced pultruded body
- Elastomeric silicone overload section
