Littelfuse LLNRK005

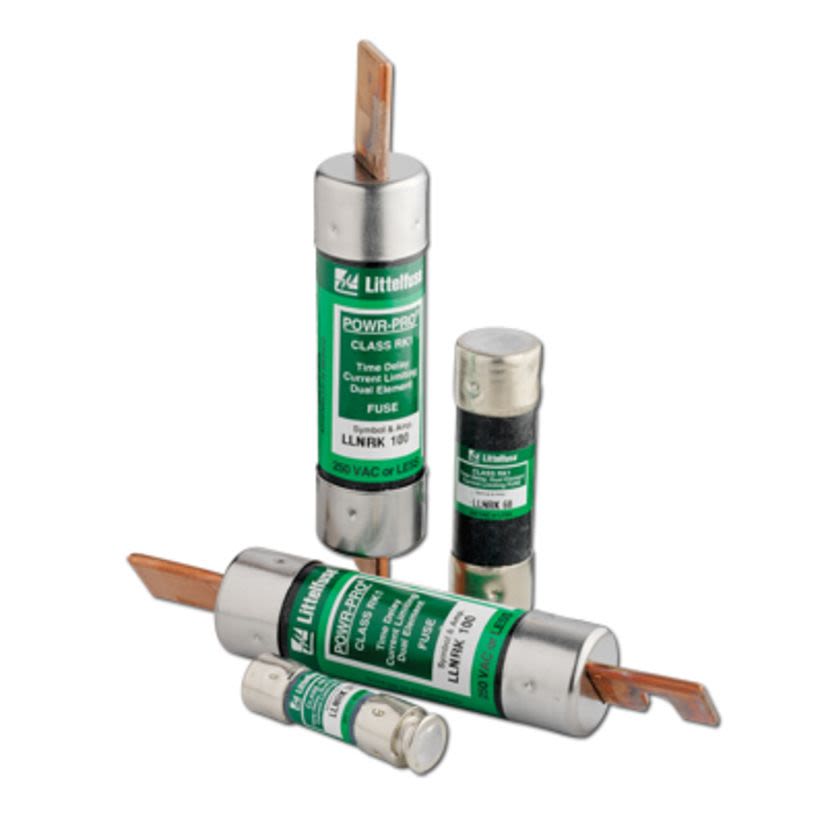

Littelfuse POWR-GARD LLNRK005 Current Limiting Time Delay Fuse, 5 A, 250 V AC/125 V DC, 200/20 kA Interrupt, RK1 Class, Cartridge Body
Littelfuse LLNRK005
Littelfuse POWR-GARD LLNRK005 Current Limiting Time Delay Fuse, 5 A, 250 V AC/125 V DC, 200/20 kA Interrupt, RK1 Class, Cartridge BodyNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LLNRK005
Werner Part #4223964
UPC079458330557
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LLNRK005
Werner Part #4223964
UPC079458330557
Product Description
Littelfuse POWR-GARD Time Delay Fuse, Current Limiting, Series: LLNRK, Non-Indicating, Rejection, 5 A, 250 V AC/125 V DC, 200/20 kA Interrupt, Class: RK1, Ferrule Terminal, Holder Mounting, Cartridge Body, Dual Element, Melamine, 9/16 in Dia x 2 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size9/16 in Dia x 2 in L
Body TypeCartridge
ClassRK1
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200/20 kA
ManufacturerLittelfuse
MaterialMelamine
Mounting TypeHolder
Package Height1.75 in
Package Length5.25 in
Package TypeEACH
Package Weight0.04 lb
Package Width4.25 in
Rejection/Non-RejectionRejection
SeriesLLNRK
Terminal TypeFerrule
Voltage Rating250 V AC/125 V DC
Documents
Applications
All General Purpose Circuits, Motors, Transformers and Safety Upgrades Applications
Features
- Extremely current limiting - reduces damage to circuits and equipment under short circuit conditions
- Stops damaging short circuits faster than any mechanical protective device
- Reduced costs - current limiting design often permits use of readily available, less costly equipment
- Low resistance design reduces power consumption and utility bills
- Excellent time delay - true dual element construction, with separate non-fatiguing thermally-reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly
- Eliminates needless downtime caused by power surges or equipment demands
- 200 kA at 250 VAC, 20 kA at 125 VDC interrupting rating
