Littelfuse LFT601003CS

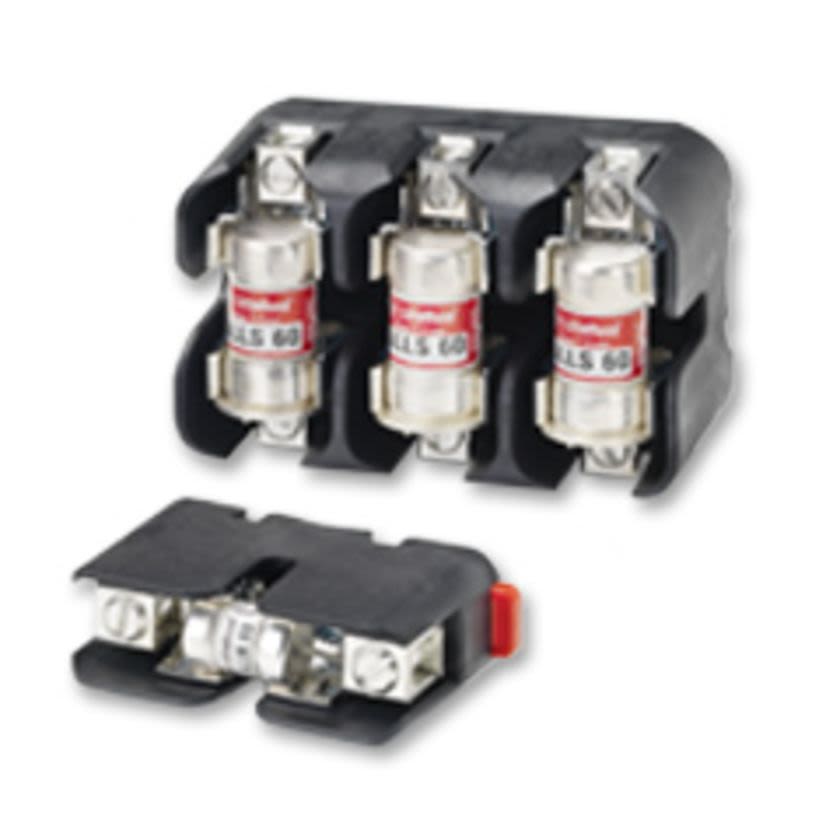

Littelfuse POWR-GARD LFT601003CS Fuse Block, 600 V AC, 100 A, Class: T, 6 to 2/0 AWG Wire, 3 Poles
Littelfuse LFT601003CS
Littelfuse POWR-GARD LFT601003CS Fuse Block, 600 V AC, 100 A, Class: T, 6 to 2/0 AWG Wire, 3 PolesOut of Stockmore info
|
BrandLittelfuse
MFG #LFT601003CS
Werner Part #4210722
UPC079458182071
Out of Stockmore info
|
BrandLittelfuse
MFG #LFT601003CS
Werner Part #4210722
UPC079458182071
Product Description
Littelfuse POWR-GARD Fuse Block, Series: LFT, 600 V AC, 100 A, 3 Pole, Class: T, Box Lug, 6 to 2/0 AWG Wire, DIN Rail Mount, 2.953 in Fuse Length, 0.81 in Fuse Dia, 130 deg C, For Use With: JLLS Series Fuse, Phenolic, 6.06 in L x 4.12 in W x 1.88 in H
Attributes
Documents
Features
Attributes
ClassT
Connection TypeBox Lug
Country of OriginCN
Dimensions6.06 in L x 4.12 in W x 1.88 in H
Fuse Diameter0.81 in
Fuse Length2.953 in
ManufacturerLittelfuse
MaterialPhenolic
Mounting TypeDIN Rail
Number of Poles3
Package Height3 in
Package Length4.5 in
Package TypeEACH
Package Weight0.15 lb
Package Width6.5 in
SeriesLFT
Size of Wire6 to 2/0 AWG
Suitable For Use WithJLLS Series Fuse
Temperature Rating130 deg C
Voltage Rating600 V AC
Documents
Features
- Compact design means increased space savings
- Universal mounting holes for easy replacement
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Lead (Pb) free
- DIN rail releasable for all 30 to 60 A fuse blocks
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Molded phenolic base
- Steel reinforcing springs supplied as standard in order to provide low resistance connection and long-range reliability
- Larger blocks employ integral heat sink for maximum heat dissipation
- Covers available for most amperages to enhance safety
- 6 to 2/0 AWG Cu/Al, 8 AWG Cu/Al and 14 to 10 AWG Cu/Al wire size
