Littelfuse LFR60200-3C

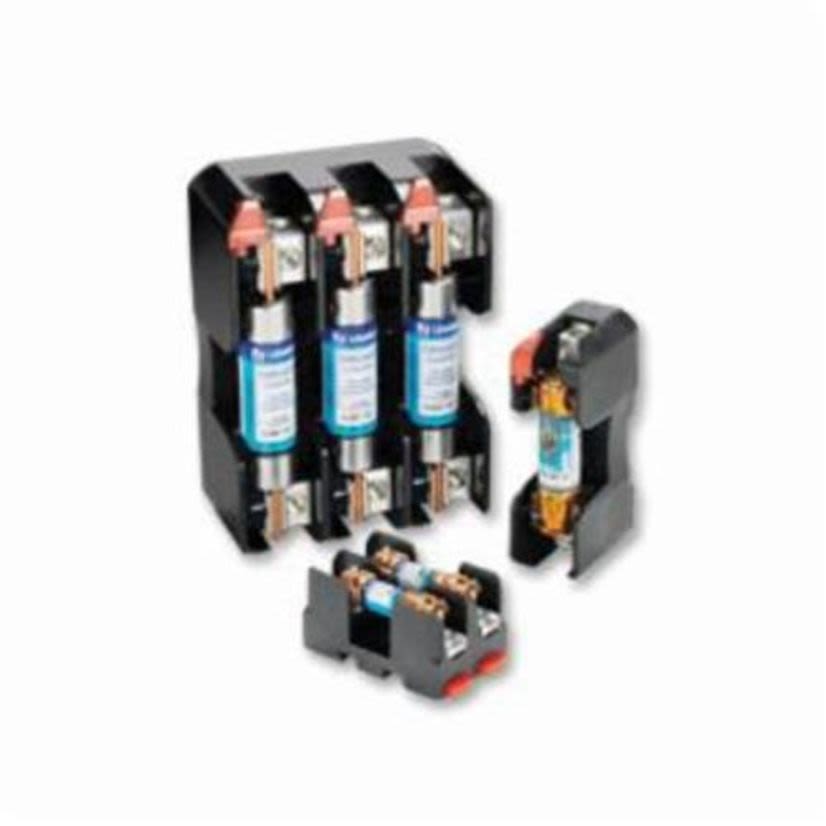

Littelfuse POWR-GARD LFR60200-3C Fuse Block, 600 V AC, 200 A, Class: R, 6 AWG to 250 kcmil Wire, 3 Poles
Littelfuse LFR60200-3C
Littelfuse POWR-GARD LFR60200-3C Fuse Block, 600 V AC, 200 A, Class: R, 6 AWG to 250 kcmil Wire, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LFR60200-3C
Werner Part #4098152
UPC079458181432
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #LFR60200-3C
Werner Part #4098152
UPC079458181432
Product Description
Littelfuse POWR-GARD Fuse Block, Series: LFR, 600 V AC, 200 A, 3 Pole, Class: R, Box Lug, 6 AWG to 250 kcmil Wire, DIN Rail Mount, 7.126 in Fuse Length, 1.874 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 9.62 in L x 9 in W x 2.85 in H
Attributes
Documents
Features
Attributes
ClassR
Connection TypeBox Lug
Country of OriginCN
Dimensions9.62 in L x 9 in W x 2.85 in H
Fuse Diameter1.874 in
Fuse Length7.126 in
ManufacturerLittelfuse
MaterialThermoplastic
Mounting TypeDIN Rail
Number of Poles3
Package Height3 in
Package Length3 in
Package TypeEACH
Package Weight0.15 lb
Package Width2 in
SeriesLFR
Size of Wire6 AWG to 250 kcmil
Suitable For Use WithFLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
Temperature Rating130 deg C
Voltage Rating600 V AC
Documents
Features
- Universal mounting holes for easy replacement
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Clip designs maximize electrical contact and minimize heat rise
- DIN rail releasable for all non-knife blade style fuses
- Lead (Pb) free
- Indication offered on most 250 and 600 VAC versions
