Littelfuse JTD500ID

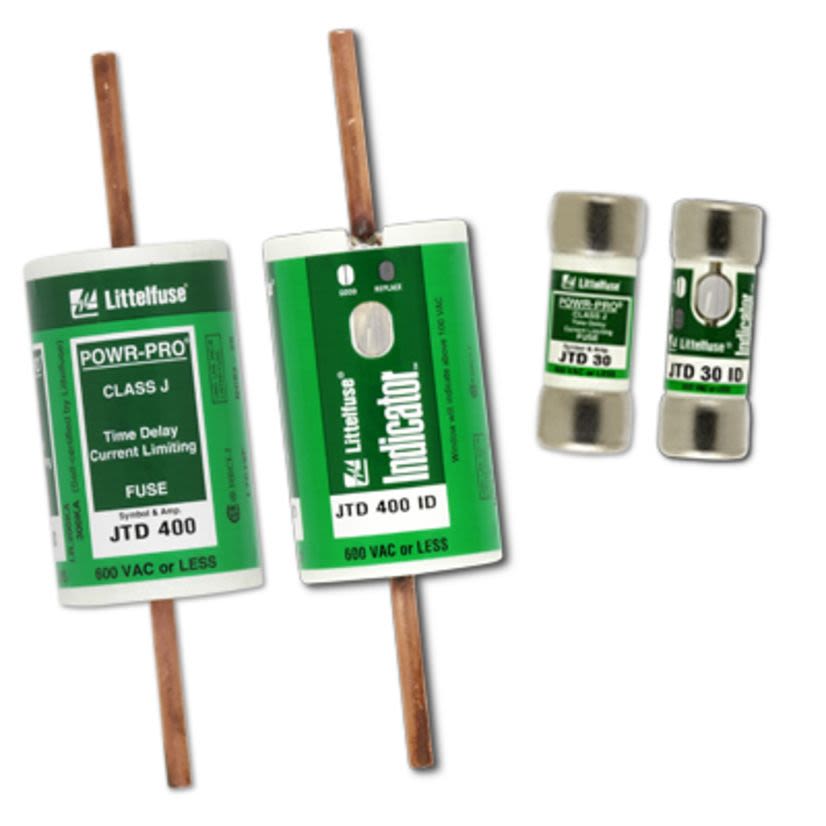

Littelfuse POWR-GARD JTD500ID Current Limiting Time Delay Fuse, 500 A, 600 V AC/500 V DC, 200/20 kA Interrupt, J Class, Cartridge Body
Littelfuse JTD500ID
Littelfuse POWR-GARD JTD500ID Current Limiting Time Delay Fuse, 500 A, 600 V AC/500 V DC, 200/20 kA Interrupt, J Class, Cartridge BodyInventory Not Available
BrandLittelfuse
MFG #JTD500ID
Werner Part #3968476
UPC079458031928
Inventory Not Available
BrandLittelfuse
MFG #JTD500ID
Werner Part #3968476
UPC079458031928
Product Description
Littelfuse POWR-GARD Time Delay Fuse, Current Limiting, Series: JTD, Indicating, 500 A, 600 V AC/500 V DC, 200/20 kA Interrupt, Class: J, Knife Blade Terminal, Bolt Mounting, Cartridge Body, Dual Element, Melamine, 2-1/2 in Dia x 8 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size2-1/2 in Dia x 8 in L
Body TypeCartridge
ClassJ
Country of OriginMX
ElementDual
Indicating/Non-IndicatingIndicating
Interrupt Rating200/20 kA
ManufacturerLittelfuse
MaterialMelamine
Mounting TypeBolt
Package TypeEACH
SeriesJTD
Terminal TypeKnife Blade
Type / StyleCurrent Limiting
Voltage Rating600 V AC/500 V DC
Documents
Applications
Motor Control Centers Applications
Features
- Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately
- Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement
- Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory
- Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory
- Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage
- Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters
- Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits
- IEC type 2 protection
- 200 kA rms symmetrical at 600 VAC/20 kA at 500 VDC
