Littelfuse JLS050

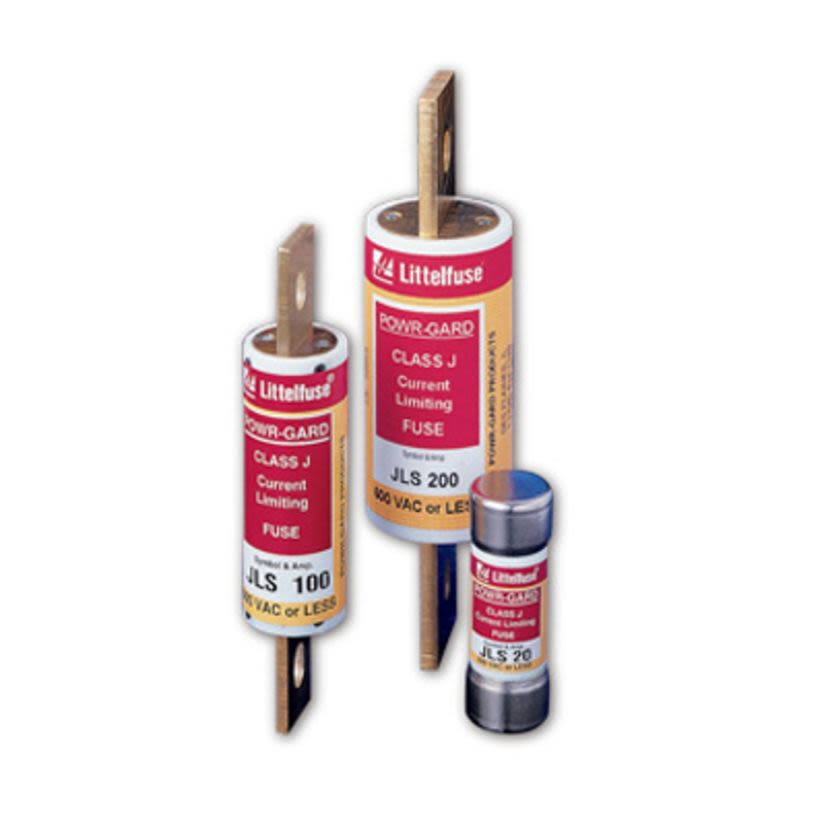

Littelfuse® POWR-GARD® JLS050 High Speed Fast Acting Fuse, 50 A, 600 VAC, 200 kA, Class J, Cartridge Body
Littelfuse JLS050
Littelfuse® POWR-GARD® JLS050 High Speed Fast Acting Fuse, 50 A, 600 VAC, 200 kA, Class J, Cartridge BodyNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #JLS050
Werner Part #3997866
UPC079458200775
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #JLS050
Werner Part #3997866
UPC079458200775
Product Description
Littelfuse® POWR-GARD® Fast Acting Fuse, High Speed, Series: JLS, Indicating/Non-Indicating: Non-Indicating, 50 A, 600 VAC, 200 kA Interrupt, Class: J, 50/60 Hz, Ferrule Terminal, Bolt-On Mount, Cartridge Body, Single Element, Melamine, 1-1/16 in Dia x 2-3/8 in L Body Size
Attributes
Documents
Features
Attributes
Body Size1-1/16 in Dia x 2-3/8 in L
Body TypeCartridge
ClassJ
Country of OriginMexico
ElementSingle
Frequency Rating50/60 Hz
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kA
ManufacturerLittelfuse
MaterialMelamine
Mounting TypeBolt-On
SeriesJLS
Terminal TypeFerrule
Type / StyleHigh Speed
Voltage Rating600 VAC
Documents
Features
Space saving - JLS fuse characteristics are similar to KLNR/KLSR fast acting class RK1, but they are much smallerExtremely current limiting - stops damaging short circuit current faster than any mechanical protective deviceFast acting - provides fast acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive componentsLonger equipment life - current-limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currentsEconomical - extremely current-limiting design often permits use of readily available, less costly equipmentEasy to useNorth American style200 kA at 600 VAC rms symmetrical
