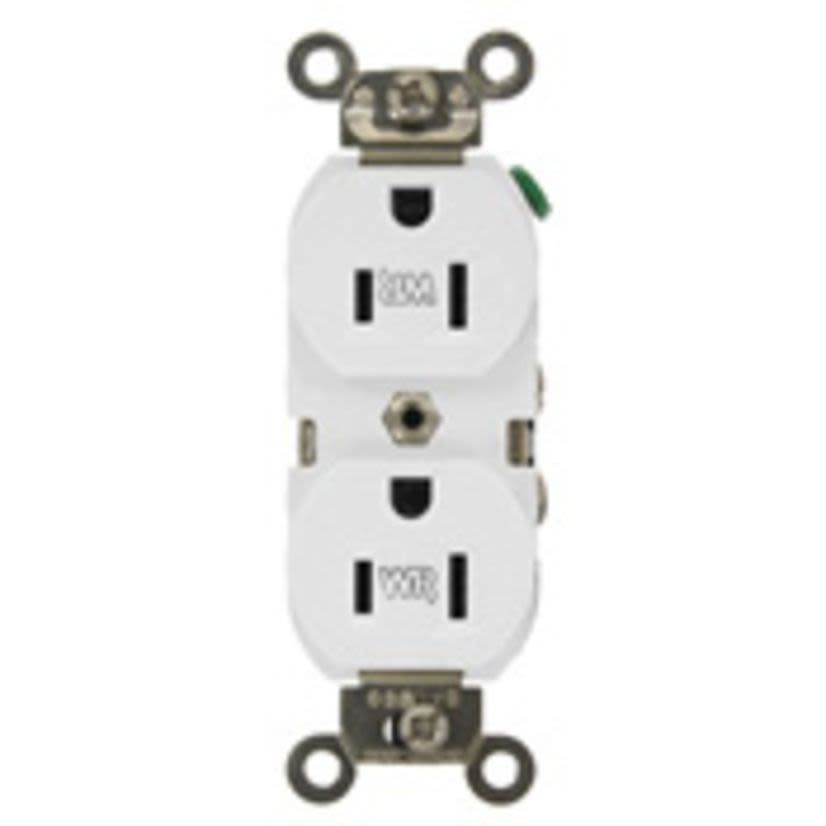

Leviton WBR15-W
Leviton WBR15-W 1-Phase Duplex Heavy Duty Self-Grounding Weather Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Leviton WBR15-W
Leviton WBR15-W 1-Phase Duplex Heavy Duty Self-Grounding Weather Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton, WBR15-W, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Weather Resistant, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.11 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions46 in H x 1.53 in W x 1.11 in D
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package Height5.13 in
Package Length12.75 in
Package TypeEACH
Package Weight10.98 lbs
Package Width8.5 IN
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Heavy Duty Self-Grounding Weather Resistant
Type / Style1-Phase Duplex Heavy Duty Self-Grounding Weather Resistant
Voltage Rating125 V AC
Documents
Applications
Hotels, Schools, Hospitals and Commercial Office Buildings Applications
Warranty
2 years
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- Nickel plated brass triple wipe line contacts
- Nickel plated brass #10-32 terminal screws
- Maximum 30 deg C after 100 cycles OL at 150% rated current temperature rise
- Weather resistant
- 14 to 10 AWG wire terminal
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
