Leviton TSL06-1LW

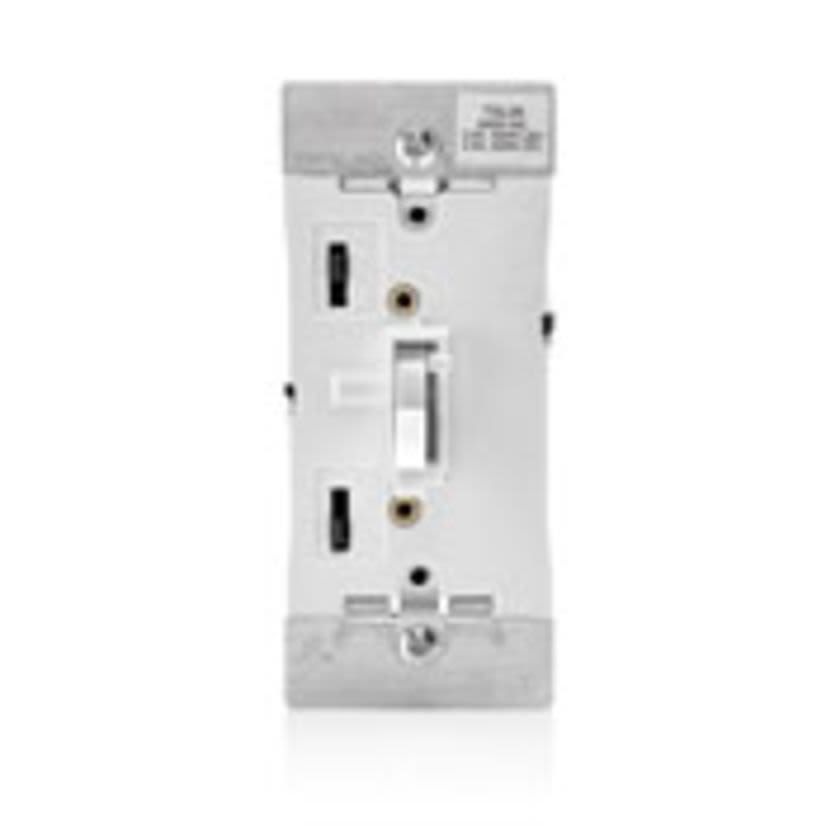

Leviton TSL06-1LW 3-Way Electro-Mechanical Preset Universal Dimmer Switch With Locator Light, 120 V AC, 1 Poles, Toggle Slide Operation, White
Leviton TSL06-1LW
Leviton TSL06-1LW 3-Way Electro-Mechanical Preset Universal Dimmer Switch With Locator Light, 120 V AC, 1 Poles, Toggle Slide Operation, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TSL06-1LW
Werner Part #4150662
UPC078477771723
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TSL06-1LW
Werner Part #4150662
UPC078477771723
Product Description
Leviton Dimmer Switch, 3-Way Electro-Mechanical Preset Universal, 120 V AC, 300/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Incandescent/LED Lamp, Preset Start, Operation Mode: Toggle Slide, ON/OFF Control, Wall Mounting, 0 to 55 deg C, White, 4.1 in H x 1.75 in W x 1.29 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorWhite
ControlON/OFF
Country of OriginCN
Dimensions4.1 in H x 1.75 in W x 1.29 in D
Frequency Rating60 Hz
Lamp TypeCFL/Incandescent/LED
ManufacturerLeviton
Mounting TypeWall
Number of Poles1
Operation ModeToggle Slide
Package Height4.43 in
Package Length2.81 in
Package TypeEACH
Package Weight0.33 lb
Package Width2.81 in
Power Rating300/600 W
Start TypePreset
Temperature Rating0 to 55 deg C
Type3-Way Electro-Mechanical Preset Universal
Type / Style3-Way Electro-Mechanical Preset Universal
Voltage Rating120 V AC
Documents
Applications
Residential Applications
Features
- Designed for optimal control of dimmable LED and CFL lamps, also compatible with incandescent and halogen lamps
- Microprocessor control offers flexibility to fine-tune for best performance with LED and CFL
- Setting available for ensuring start-up for CFL lamps
- Wider dimming range for LED and CFL lamps than conventional incandescent dimmers
- Programming feature allows users to modify the dimming range to optimize low light level performance when required
- Toggle switch with built-in locator light can be disabled
- Integrated linear full range slide control for easy, precise operation
- Separate ON/OFF toggle switch that preserves the selected setting
- Provides 1-pole (one location) or 3-way (two location) control when paired with a 3-way switch
- Slim, compact housing fits easily into a standard wallbox
- No removal of fins required for multi-gang installations
- Built-in radio/TV interference filter
