Leviton TBR20-I

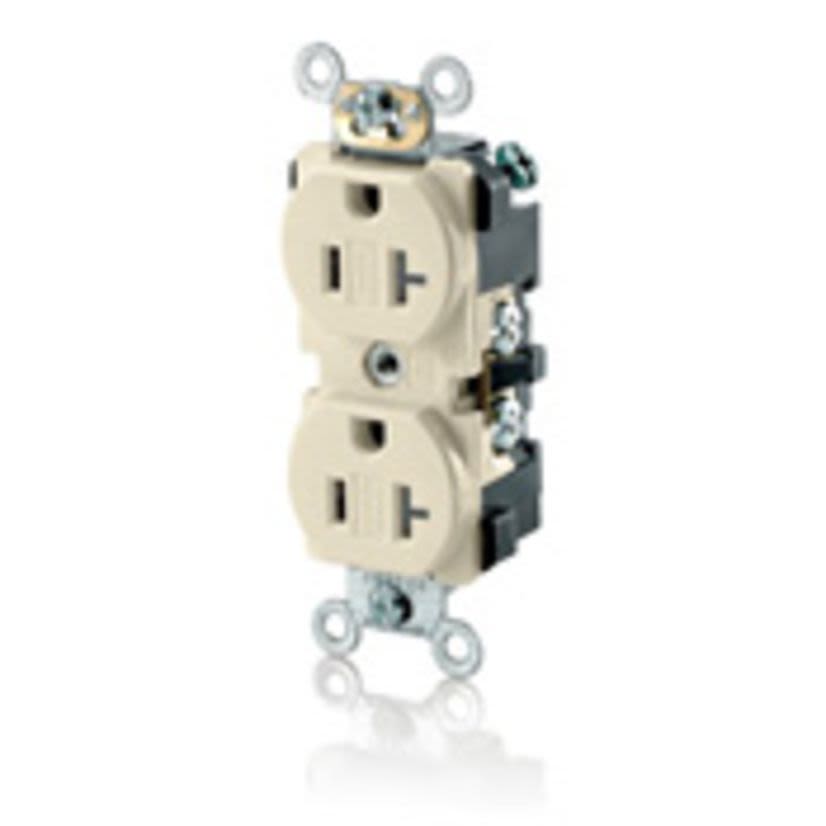

Leviton TBR20-I Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory
Leviton TBR20-I
Leviton TBR20-I Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, IvoryIn Stock: 91more info
|
BrandLeviton
MFG #TBR20-I
Werner Part #3793679
UPC078477391976
In Stock: 91more info
|
BrandLeviton
MFG #TBR20-I
Werner Part #3793679
UPC078477391976
Product Description
Leviton, TBR20-I, Straight Blade Receptacle, Duplex Tamper Resistant, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 1.56 in L x 19 in W x 46 in H Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Dimensions1.56 in L x 19 in W x 46 in H
Enclosure TypeNEMA WD-1/WD-6
GradeCommercial
GTIN00078477391976
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height7.75 in
Package Length12.25 in
Package TypeEACH
Package Weight10.74 lbs
Package Width8.75 in
SeriesDuplex Tamper Resistant
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeDuplex Tamper Resistant
Type / StyleDuplex Tamper Resistant
Voltage Rating125 V AC
Warranty
10-Year Limited
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|UL 498 File No. E13399|CSA 152105|NOM 057
