Leviton TBR15-I

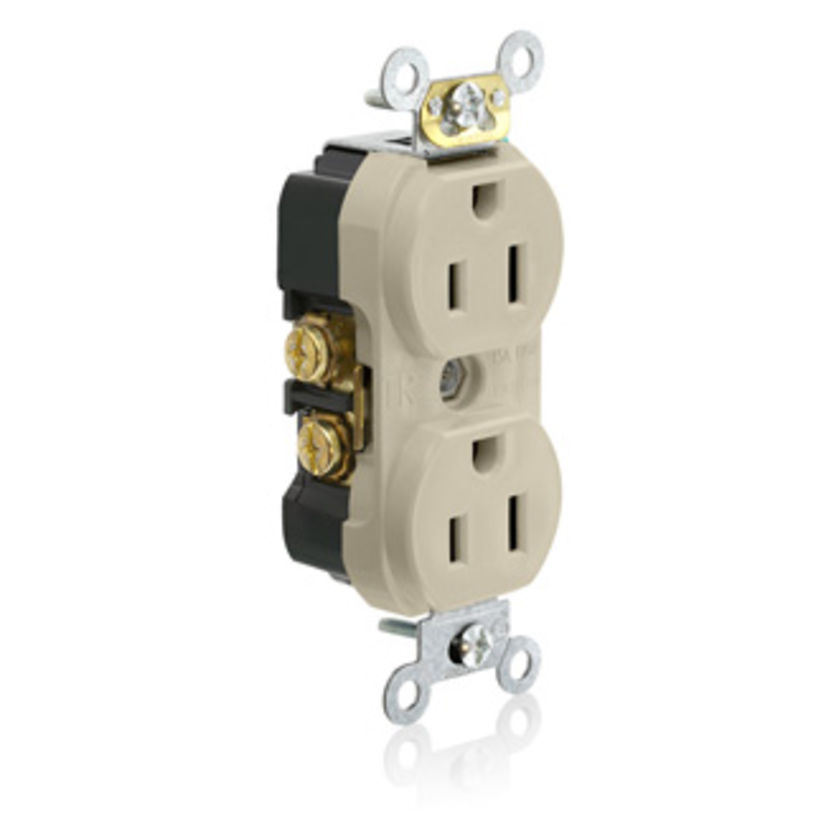

Leviton TBR15-I 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton TBR15-I
Leviton TBR15-I 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, IvoryNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TBR15-I
Werner Part #3793678
UPC078477391969
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #TBR15-I
Werner Part #3793678
UPC078477391969
Product Description
Leviton, TBR15-I, Straight Blade Receptacle, 1-Phase Duplex Tamper Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 46 in H x 1.56 in W x 19 in D Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Dimensions46 in H x 1.56 in W x 19 in D
GradeCommercial
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package Height7.75 in
Package Length12.25 in
Package TypeEACH
Package Weight10.59 lbs
Package Width8.75 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Tamper Resistant
Type / Style1-Phase Duplex Tamper Resistant
Voltage Rating125 V AC
Warranty
10 years
Features
- 2000 VAC minimum dielectric strength
- Brass 0.031 THK line contacts
- Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping ensure hairpins, keys
- TR symbol on residential receptacles assures they meet the 2008 NEC requirement
- Ultrasonic welding, heavy duty construction offers long, trouble free service life
- Tamper resistant
- Narrow body
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
