Leviton T5362-T

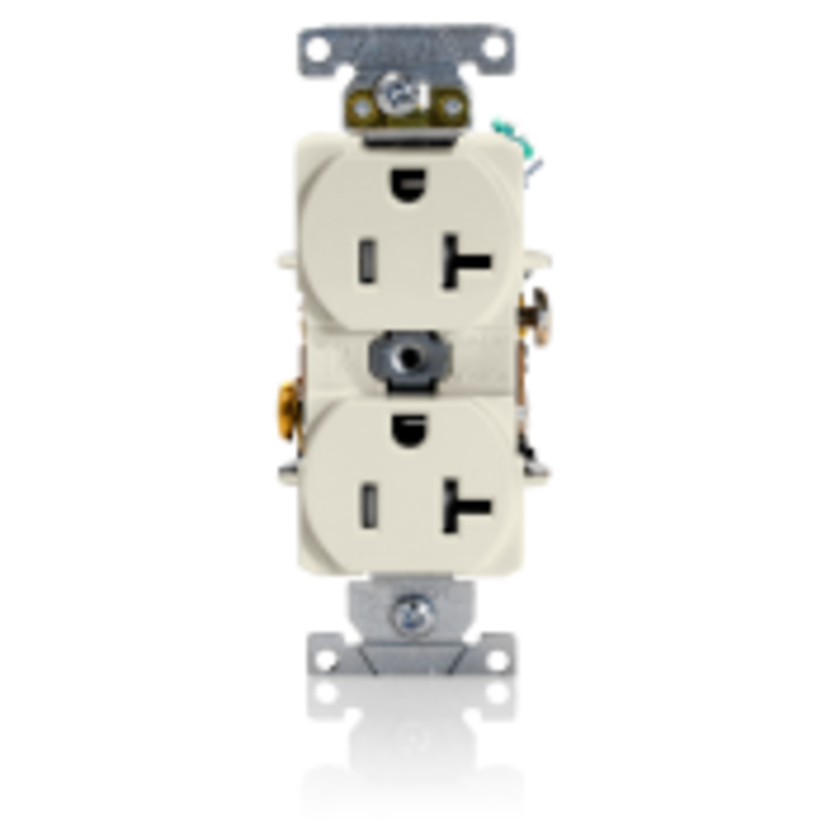

Leviton T5362-T Duplex Heavy Duty Self-Grounding Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Light Almond
Leviton T5362-T
Leviton T5362-T Duplex Heavy Duty Self-Grounding Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton Straight Blade Receptacle, Duplex Heavy Duty Self-Grounding Tamper Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate/Polyester Blend, Light Almond, 4.06 in H x 1.71 in W x 1.11 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorLight Almond
Country of OriginMX
Dimensions4.06 in H x 1.71 in W x 1.11 in D
GradeIndustrial
Horsepower1 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate/Polyester Blend
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height5.13 in
Package Length12.75 in
Package TypeEACH
Package Weight10.97 lbs
Package Width8.5 IN
Temperature Rating-40 to 75 deg C
Terminal TypeBack/Side Wire
TypeDuplex Heavy Duty Self-Grounding Tamper Resistant
Type / StyleDuplex Heavy Duty Self-Grounding Tamper Resistant
Voltage Rating125 V AC
Documents
Applications
Commercial Buildings, Transportation Facilities, Municipal Buildings, Educational Facilities and Industrial Applications
Features
- Brass self-grounding clip is permanently staked ON for secure and reliable performance
- Wide receptacle face shelf provides exceptional support to the wallplate or box cover
- Body and face made of impact resistant advanced engineering polymer for extreme durability
- Universal strap design provides ample support for electrical box installations and includes multiple break-OFF tabs to eliminate interference with virtually any cover or wallplate
- Ground terminal clamp allows for both back and side wiring
- Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
- External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
- Molded in ribs prevent terminal screws from making contact with wallbox
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73
Warranty
10 Years
