Leviton T5325-W

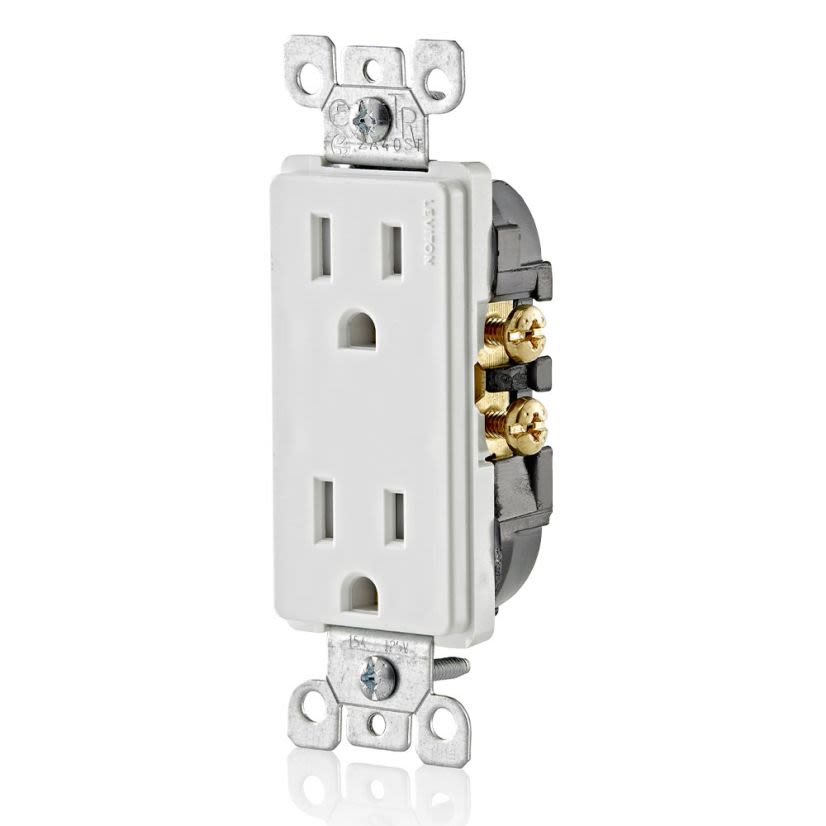

Leviton T5325-W Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Leviton T5325-W
Leviton T5325-W Duplex Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteIn Stock: 424more info
|
BrandLeviton
MFG #T5325-W
Werner Part #3791648
UPC078477381625
In Stock: 424more info
|
BrandLeviton
MFG #T5325-W
Werner Part #3791648
UPC078477381625
Product Description
Leviton, T5325-W, Straight Blade Receptacle, Duplex Grounding Tamper-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-6 Enclosure, -40 to 60 deg C, Quick-Wire Push-In/Side Wire Terminal, Thermoplastic, White, 4.2 in H x 1.33 in W x 0.76 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
Country of OriginUS
Dimensions4.2 in H x 1.33 in W x 0.76 in D
Enclosure TypeNEMA WD-6
GradeCommercial
GTIN00078477381625
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesDuplex Grounding Tamper-Resistant
Temperature Rating-40 to 60 deg C
Terminal TypeQuick-Wire Push-In/Side Wire
TypeDuplex Grounding Tamper-Resistant
Type / StyleDuplex Grounding Tamper-Resistant
Voltage Rating125 V AC
Applications
Commercial Applications
Features
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Double wipe power contacts for reliable conductivity and plug retention
- Heavy gauge zinc plated steel mounting strap
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD6|ANSI C73|NOM 057|CSA File No. LR406/CSA C22.22 No. 111|UL File No. E13399|UL 20/498/943|UL94 V-2 Flammability Rating
Warranty
2 years Limited
