Leviton ODS06-IDI

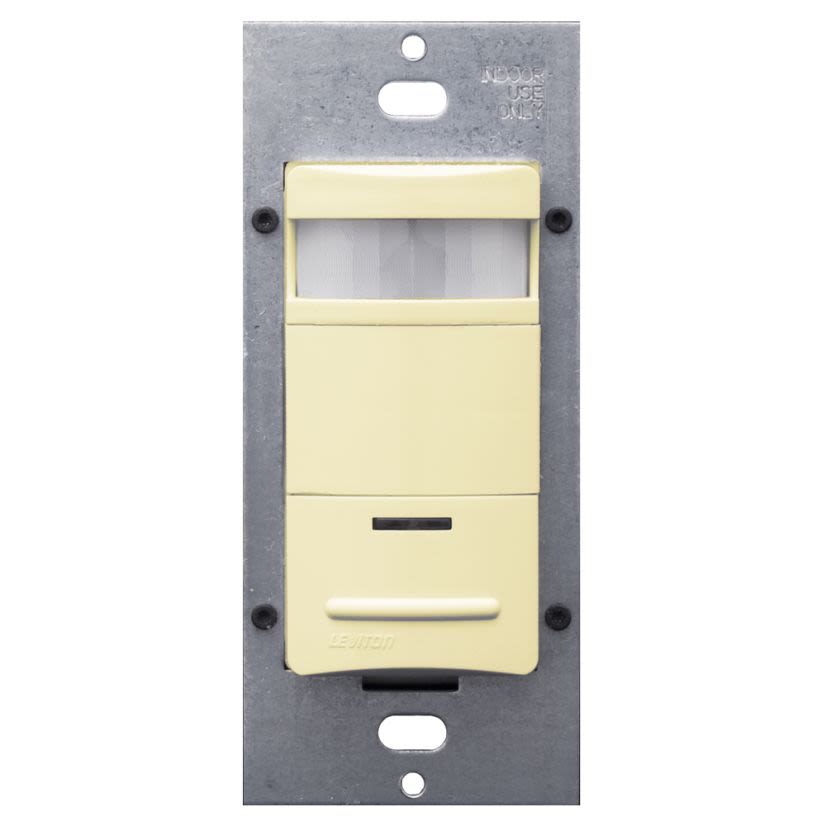

Leviton ODS06-IDI 1-Pole Low-Profile Occupancy Sensor, 120/230/277 V AC, PIR Sensor, 1600 sq-ft Coverage, 180 deg Viewing, Wall Mounting
Leviton ODS06-IDI
Leviton ODS06-IDI 1-Pole Low-Profile Occupancy Sensor, 120/230/277 V AC, PIR Sensor, 1600 sq-ft Coverage, 180 deg Viewing, Wall MountingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODS06-IDI
Werner Part #4158933
UPC078477705285
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODS06-IDI
Werner Part #4158933
UPC078477705285
Product Description
Leviton, ODS06-IDI, Occupancy Sensor, 1-Pole Low-Profile, 120/230/277 V AC, 600 W, 800 VA, 1500 VA, 1/4 hp Power, PIR Sensor, 1600 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Automatic ON/Manual Control Output, Wall Mounting, 32 to 122 deg F, Ivory, 4.06 in H x 1.75 in W x 1.85 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorIvory
Control OutputAutomatic On/Manual On
Country of OriginCN
Coverage1600 sq-ft
Dimensions4.06 in H x 1.75 in W x 1.85 in D
Frequency Rating50/60Hz
Lamp TypeFluorescent/Incandescent
ManufacturerLeviton
Mounting TypeWall
Package Height5.25 in
Package Length11.75 in
Package TypeEACH
Package Weight3.18 lbs
Package Width6 in
Power Rating600 W, 800 VA, 1500 VA, 1/4 hp
Response Frequency50/60 Hz
Sensor TypePIR
Temperature Rating32 to 122 deg F
Time Delay30 s to 30 min
Type1-Pole Low-Profile
Type / Style1-Pole Low-Profile
Viewing Angle180 deg
Voltage Rating120/230/277 V AC
Documents
Applications
Small Office, Lounges, Conference Rooms and Classrooms
Warranty
5 Years Limited
Features
- Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
- Low profile design eliminates obtrusive appearance
- Elegant Decora wallplates compliment any interior for sleek aesthetics, uses Decora wallplates and coordinates with Leviton popular line of Decora wiring devices
- 180 deg field of view provides approximately 160 sq-ft of coverage
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Two dual element PIR sensors used to widen detection range
- Vandal resistant PIR lens
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for ca title 24 energy savings
- Time delay adjustment for delayed OFF time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
- Vacancy confirmation when the time out expires and the lights turns OFF, a 30 sec vacancy confirmation exists to turn the lights back ON
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- No neutral design is optional for retrofit applications
- 1-unit can be used for 120 to 277 VAC lighting, compatible with LED drivers, electronic and magnetic ballasts
- Single relay, photocell controlled
