Leviton ODC20-UDW

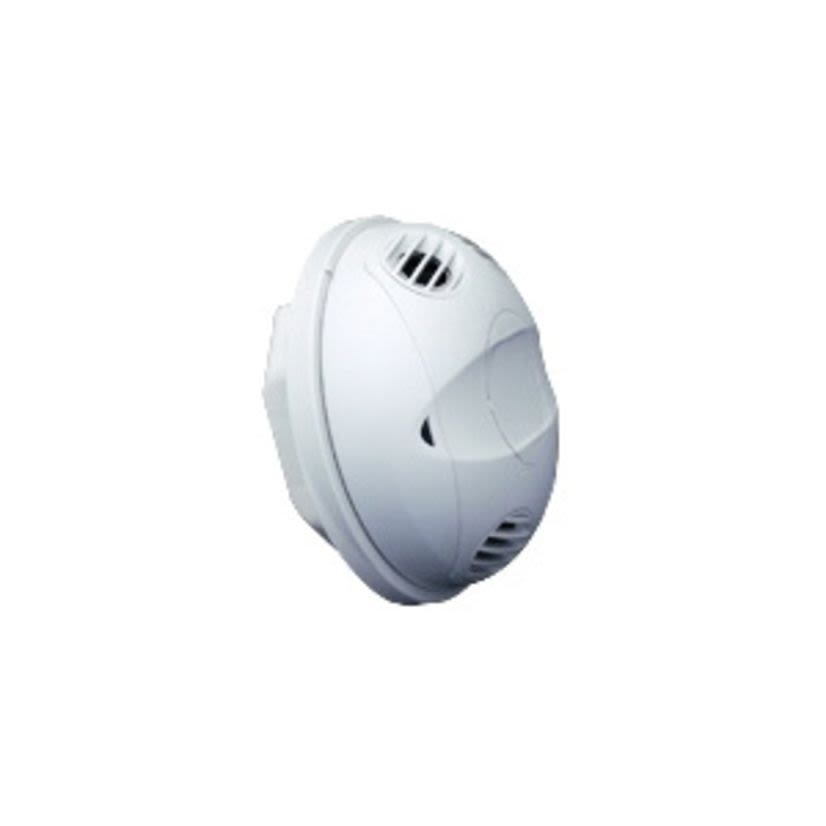

Leviton ODC20-UDW Line Voltage Self Contained Occupancy Sensor, 120 to 277 V AC, Ultrasonic Sensor, 2000 sq-ft Coverage, Ceiling Mounting
Leviton ODC20-UDW
Leviton ODC20-UDW Line Voltage Self Contained Occupancy Sensor, 120 to 277 V AC, Ultrasonic Sensor, 2000 sq-ft Coverage, Ceiling MountingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton, ODC20-UDW, Occupancy Sensor, Line Voltage Self Contained, 120 to 277 V AC, 60 to 30 mA, Ultrasonic Sensor, 2000 sq-ft Coverage, 30 s to 30 min Time Delay, 50/60 Hz Response, Wired Connection, Automatic On/Off/Manual On Control Output, NEMA 4/10 Enclosure, Ceiling Mounting, 0 to 40 deg C, White, 4.8 in Dia x 2.27 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ColorWhite
Connection TypeWired
Control OutputAutomatic On/Off/Manual On
Country of OriginCN
Coverage2000 sq-ft
Dimensions4.8 in Dia x 2.27 in H
Enclosure TypeNEMA 4/10
ManufacturerLeviton
Mounting TypeCeiling
Response Frequency50/60 Hz
Sensor TypeUltrasonic
Temperature Rating0 to 40 deg C
Time Delay30 s to 30 min
TypeLine Voltage Self Contained
Type / StyleLine Voltage Self Contained
Voltage Rating120 to 277 V AC
Documents
Applications
Commercial Applications
Included
Open, Closed Loop Photocell
Warranty
5 Years Limited
Features
- Utilizes sensors which emit non-audible sound waves and sense movement
- Any movement within the sensor's field of view causes a shift in the original emitted frequency, the sensor identifies the change as movement and controls light accordingly
- U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance
- Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use
- Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Time delay and saved settings are protected during power outages and will return to the last known state
- Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility
- Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns
- Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Adjustable time delay
- Configurable for manual ON/automatic OFF or automatic ON/automatic OFF
