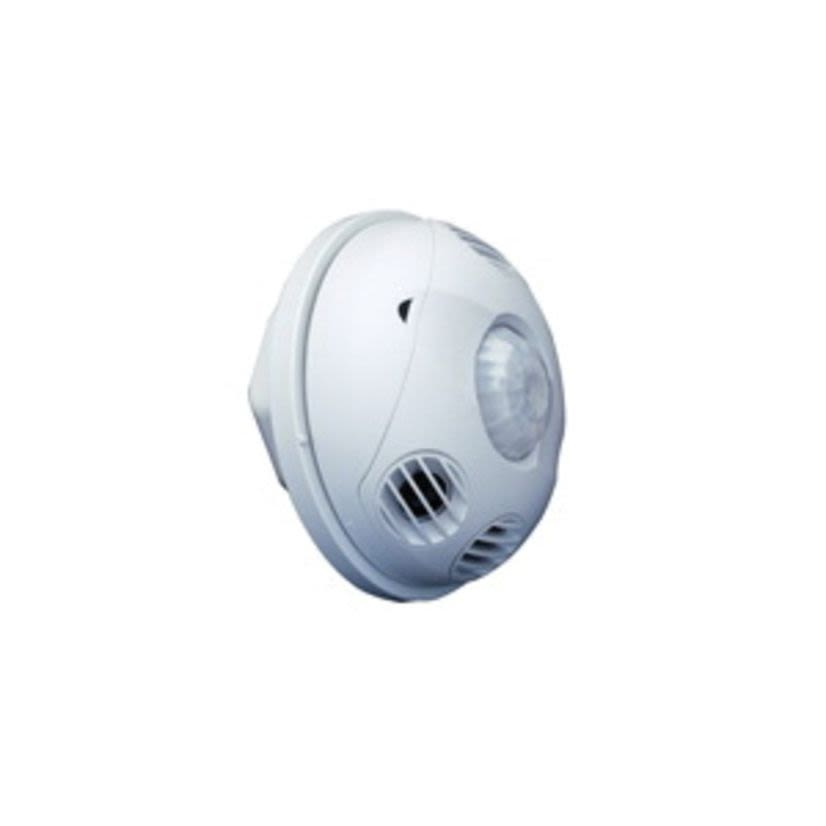

Leviton ODC10-MDW
Leviton ODC10-MDW Line Voltage Self Contained Occupancy Sensor, 120 to 277 V AC, Multi-Technology/PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, Ceiling Mounting
Leviton ODC10-MDW
Leviton ODC10-MDW Line Voltage Self Contained Occupancy Sensor, 120 to 277 V AC, Multi-Technology/PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, Ceiling MountingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODC10-MDW
Werner Part #4020490
UPC078477539996
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODC10-MDW
Werner Part #4020490
UPC078477539996
Product Description
Leviton, ODC10-MDW, Occupancy Sensor, Line Voltage Self Contained, 120 to 277 V AC, 60 to 30 mA, Multi-Technology/PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 30 s to 30 min Time Delay, 50 Hz Response, Wired Connection, Automatic On/Off/Manual On Control Output, NEMA 4/10 Enclosure, Ceiling Mounting, 0 to 40 deg C, White, 4.8 in Dia x 2.39 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ColorWhite
Connection TypeWired
Control OutputAutomatic On/Off/Manual On
Country of OriginCN
Coverage1000 sq-ft
Dimensions4.8 in Dia x 2.39 in H
Enclosure TypeNEMA 4/10
ManufacturerLeviton
Mounting TypeCeiling
Package Height7.75 in
Package Length5.75 in
Package TypeEACH
Package Weight0.89 lb
Package Width4.38 in
Response Frequency50 Hz
Sensor TypeMulti-Technology/PIR/Ultrasonic
Temperature Rating0 to 40 deg C
Time Delay30 s to 30 min
TypeLine Voltage Self Contained
Type / StyleLine Voltage Self Contained
Voltage Rating120 to 277 V AC
Documents
Applications
Commercial Applications
Included
Open, Closed Loop Photocell
Warranty
5 Years Limited
Features
- Sensors combine both PIR and U/S technology for unrivaled performance and reliability
- Sensors use PIR technology to initially turn lights on and use U/S technology to keep the lights ON
- Exclusive false detection software assures lights are ON only when needed
- Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use
- Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- False detection timer (M/T) the PIR scans for movement and shuts lights OFF after 31 min preventing false triggers from HVAC systems
- Time delay and saved settings are protected during power outages and will return to the last known state
- Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Test mode for simplified commissioning
- Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility
- Industry exclusive fail safe circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns
- Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color coded blue (high density) and red (mid range) for contractors and end users to easily identify lenses from the ground
- Red visual LED indicator blinks when infrared is detecting motion and during photocell manual calibration, solid during device malfunction
- Green visual LED indicator blinks when U/S is detected, solid during auto-calibration
- Yellow visual LED indicator blinks during test mode, solid with emergency/BMS input
- Adjustable time delay
