Leviton ODC04-IDW

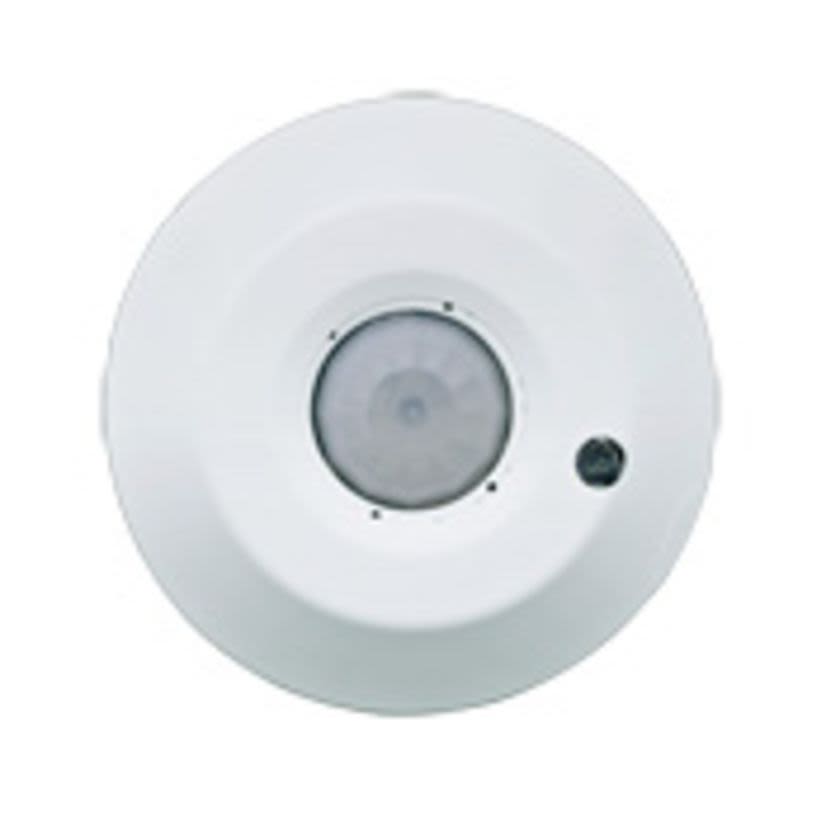

Leviton ODC04-IDW Self Contained Occupancy Sensor, 120 to 277 V AC, PIR Sensor, 450 sq-ft Coverage, 360 deg Viewing, Ceiling Mounting
Leviton ODC04-IDW
Leviton ODC04-IDW Self Contained Occupancy Sensor, 120 to 277 V AC, PIR Sensor, 450 sq-ft Coverage, 360 deg Viewing, Ceiling MountingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODC04-IDW
Werner Part #4001688
UPC078477539965
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #ODC04-IDW
Werner Part #4001688
UPC078477539965
Product Description
Leviton, ODC04-IDW, Occupancy Sensor, Self Contained, 120 to 277 V AC, PIR Sensor, 450 sq-ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Wired Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, NEMA 4/10 Enclosure, Ceiling Mounting, 0 to 40 deg C, White, 4.81 in Dia x 2.39 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorWhite
Connection TypeWired
Control OutputManual On/Automatic Off/Automatic On/Automatic Off
Country of OriginCN
Coverage450 sq-ft
Dimensions4.81 in Dia x 2.39 in H
Enclosure TypeNEMA 4/10
Lamp TypeLED
ManufacturerLeviton
Mounting TypeCeiling
Package Height7.75 in
Package Length5.75 in
Package TypeEACH
Package Weight0.88 lb
Package Width4.38 in
Response Frequency50/60 Hz
Sensor TypePIR
Temperature Rating0 to 40 deg C
Time Delay30 s to 30 min
TypeSelf Contained
Type / StyleSelf Contained
Viewing Angle360 deg
Voltage Rating120 to 277 V AC
Documents
Applications
Commercial Applications
Warranty
5 Years Limited
Features
- Uses industry exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems
- A fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
- Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use
- Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported
- Industry exclusive fail safe circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns
- Presentation mode allows user to turn lights OFF and keep them OFF while the room is occupied
- Test mode for simplified commissioning
- Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility
- Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color coded blue (high density) and red (mid range) for contractors and end users to easily identify lenses from the ground
- Red visual LED indicator blinks when infrared is detecting motion and during photocell manual calibration, solid during device malfunction
- Yellow visual LED indicator blinks during test mode, solid with emergency/BMS input
- Blue visual LED indicator blinking light indicates photocell override
- Configurable for manual ON/automatic OFF or automatic ON/automatic OFF
- Adjustable time delay
