Leviton MT830-R

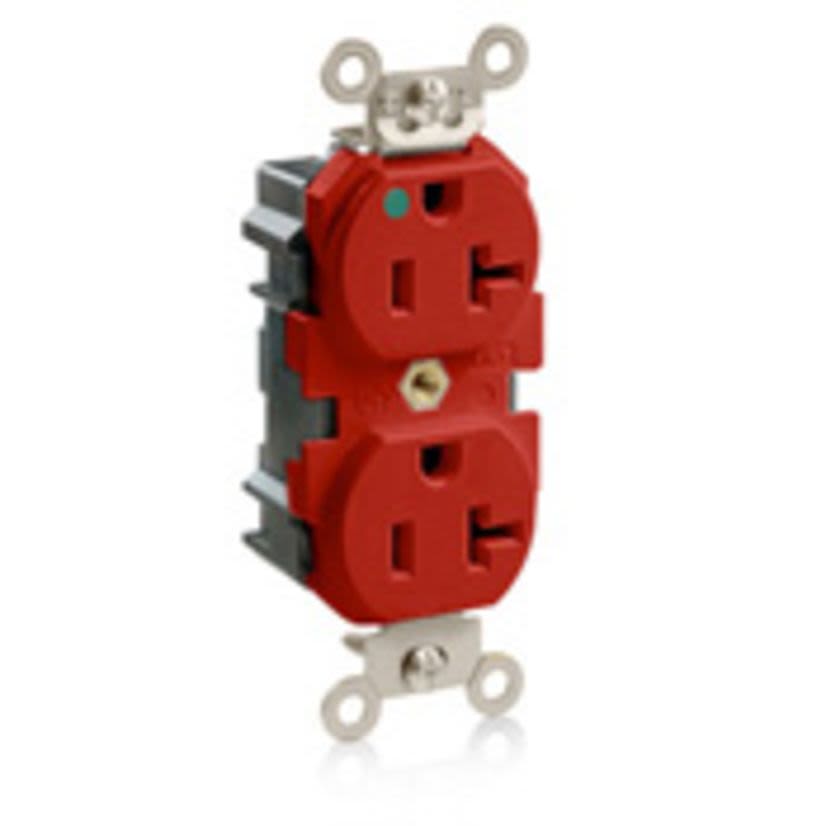

Leviton Lev-Lok MT830-R 1-Phase Duplex Heavy Duty Self-Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Leviton MT830-R
Leviton Lev-Lok MT830-R 1-Phase Duplex Heavy Duty Self-Grounding Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, RedNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #MT830-R
Werner Part #3969947
UPC078477419571
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #MT830-R
Werner Part #3969947
UPC078477419571
Product Description
Leviton Lev-Lok Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Tamper-Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R Rating, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Red, 1.53 in W x 1.36 in D x 46 in H Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Country of OriginMX
Dimensions1.53 in W x 1.36 in D x 46 in H
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeModular
Type1-Phase Duplex Heavy Duty Self-Grounding Tamper-Resistant
Type / Style1-Phase Duplex Heavy Duty Self-Grounding Tamper Resistant
Voltage Rating125 V AC
Documents
Features
- Constructed with impact-resistant thermoplastic nylon cover and body
- Four corner latches securely fasten the receptacles face to the body
- Large triple wipe, brass T line contacts for superior contact and conductivity
- 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules
- Grounding clip permanently secured to strap for easy, simple and secure installation
- Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment
- Wiring module locks and latches to the receptacle body providing double the connection security
- Receptacle to be installed only with Leviton MSTWL series wiring modules
- MSTWL wiring module shipped separately with protective cover and factory installed circuit ID label
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|cULus Listed|UL94 V-2 Flammability Rating
