Leviton MT563-SW

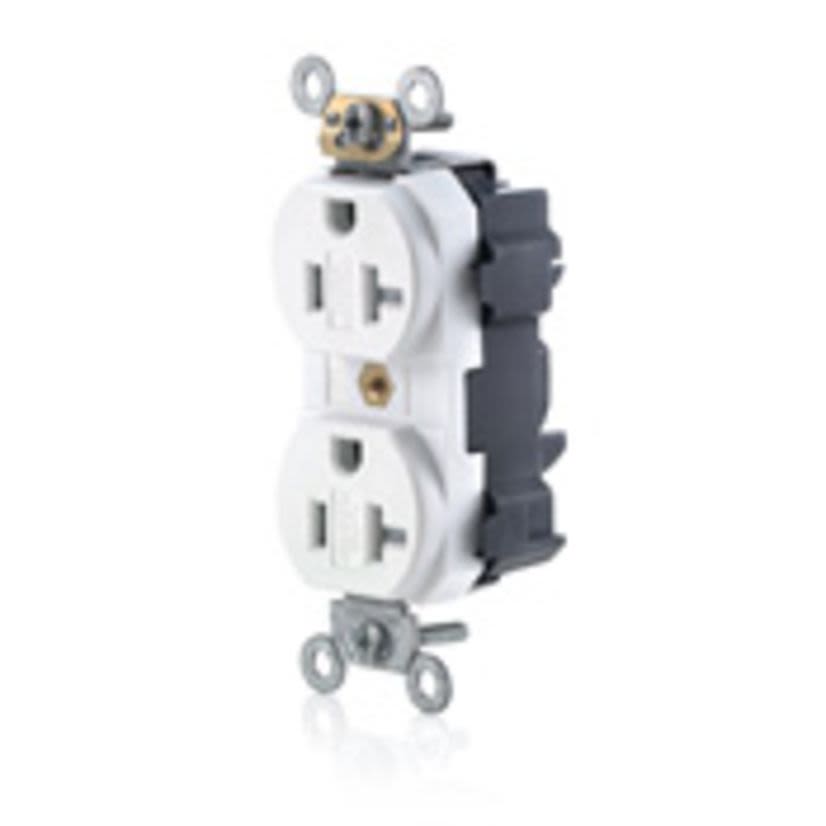

Leviton Lev-Lok MT563-SW 1-Phase Duplex Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton MT563-SW
Leviton Lev-Lok MT563-SW 1-Phase Duplex Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 201more info
|
BrandLeviton
MFG #MT563-SW
Werner Part #3933360
UPC078477455289
In Stock: 201more info
|
BrandLeviton
MFG #MT563-SW
Werner Part #3933360
UPC078477455289
Product Description
Leviton Lev-Lok Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Tamper Resistant, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.36 in D
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions46 in H x 1.53 in W x 1.36 in D
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height8.25 in
Package Length10.75 in
Package TypeEACH
Package Weight12.41 lbs
Package Width9.25 in
Temperature Rating-40 to 60 deg C
Terminal TypeModular
Type1-Phase Duplex Heavy Duty Tamper Resistant
Type / Style1-Phase Duplex Heavy Duty Tamper Resistant
Voltage Rating125 V AC
Applications
Commercial
Warranty
10 Years
Features
- Constructed with impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten the receptacles face to the body
- Large triple wipe, brass T line contacts for superior contact and conductivity
- 12 AWG THHN wire leads, 6 in L on MSTWL series wiring modules
- Galvanized steel, wrap around mounting strap with riveted ground contacts
- Grounding clip permanently secured to strap for easy, simple and secure installation
- Wiring module locks and latches to the receptacle body providing double the connection security
- Receptacle to be installed only with Leviton MSTWL series wiring modules
- MSTWL wiring module shipped separately with protective label and factory installed circuit ID label
- Galvanized steel with riveted ground contacts mounting strap
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
