Leviton M5262-ST

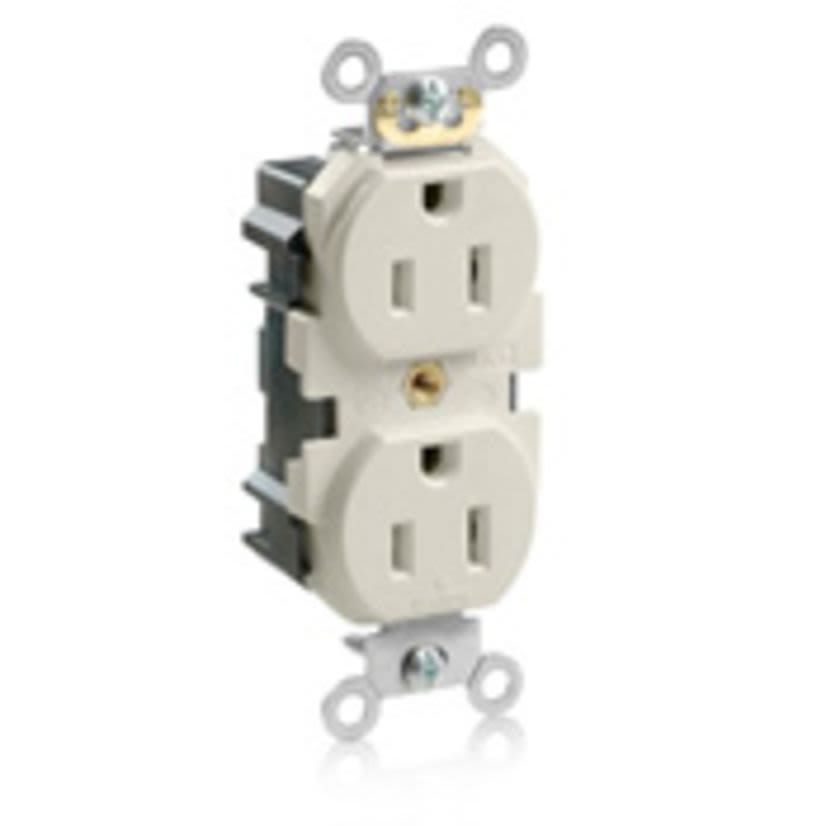

Leviton Lev-Lok M5262-ST 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Leviton M5262-ST
Leviton Lev-Lok M5262-ST 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M5262-ST
Werner Part #3832350
UPC078477362846
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M5262-ST
Werner Part #3832350
UPC078477362846
Product Description
Leviton Lev-Lok Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 V AC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Light Almond, 46 in H x 1.53 in W x 1.22 in D
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorLight Almond
Country of OriginMX
Dimensions46 in H x 1.53 in W x 1.22 in D
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package Height8.25 in
Package Length10.75 in
Package TypeEACH
Package Weight11.4 lbs
Package Width9.25 in
Temperature Rating-40 to 60 deg C
Terminal TypeModular
Type1-Phase Duplex Heavy Duty
Type / Style1-Phase Duplex Heavy Duty
Voltage Rating125 V AC
Documents
Warranty
10-Year Limited
Features
- Constructed with impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten the receptacles face to the body
- Large triple wipe, brass T line contacts for superior contact and conductivity
- 12 AWG THHN wire leads, 6 in L on MSTWL series wiring modules
- Galvanized steel, wrap around mounting strap with riveted ground contacts
- Grounding clip permanently secured to strap for easy, simple and secure installation
- Wiring module locks and latches to the receptacle body providing double the connection security
- Receptacle to be installed only with Leviton MSTWL series wiring modules
- MSTWL wiring module shipped separately with protective label and factory installed circuit ID label
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|cULus Listed|UL94 V-2 Flammability Rating
