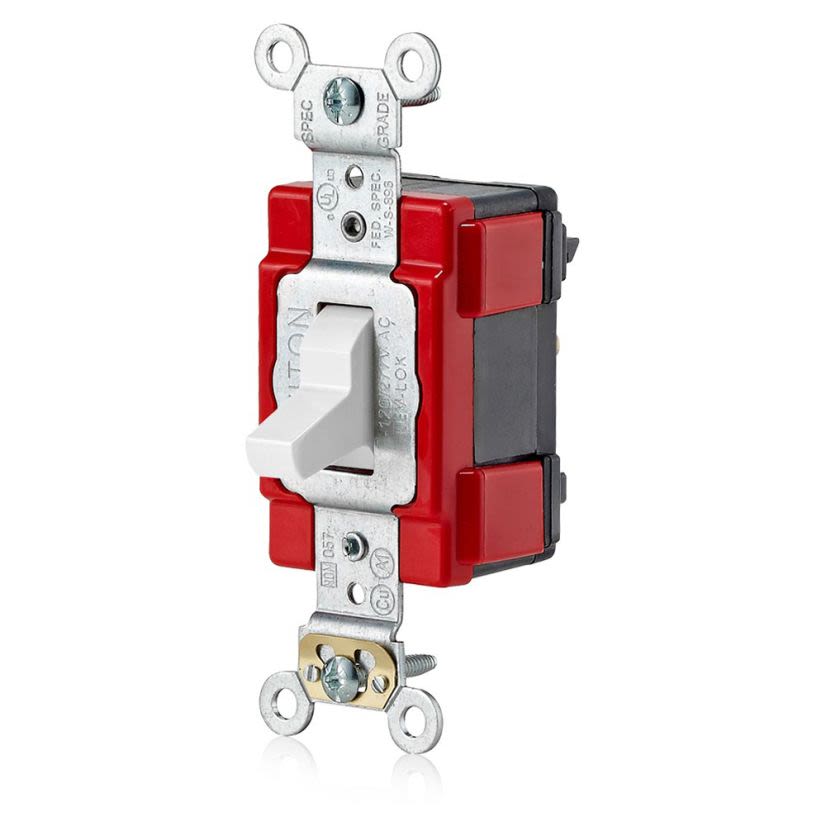

Leviton M1223-W
Leviton Lev-Lok M1223-W 3-Way Large Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating
Leviton M1223-W
Leviton Lev-Lok M1223-W 3-Way Large Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power RatingIn Stock: 6more info
|
In Stock: 6more info
|
Product Description
Leviton Lev-Lok Toggle Switch, 3-Way Large, 120/277 V AC, 20 A, 800 W, 1000 VA Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Modular Terminal, 50000 Cycles Operating Cycles, Polybutylene Terephthalate, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.5 in W x 2.1 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeToggle
ColorWhite
Country of OriginMX
Dimensions4.06 in H x 1.5 in W x 2.1 in D
Electrical Ratings800 W, 1000 VA
Enclosure TypeNEMA WD-1/WD-6
GradeExtra Heavy-Duty Industrial Specification Grade
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingWD-1 & WD-6
Package Height5.13 in
Package Length9.5 in
Package TypeEACH
Package Weight5.28 lbs
Package Width9.5 in
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeModular
Type3-Way Large
Type / Style3-Way Large
Voltage Rating120/277 V AC
Documents
Applications
Commercial and Residential Applications
Features
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|cULus File No. E7458|NOM 057|UL94 V-2 Flammability Rating
Warranty
10 Years Limited
