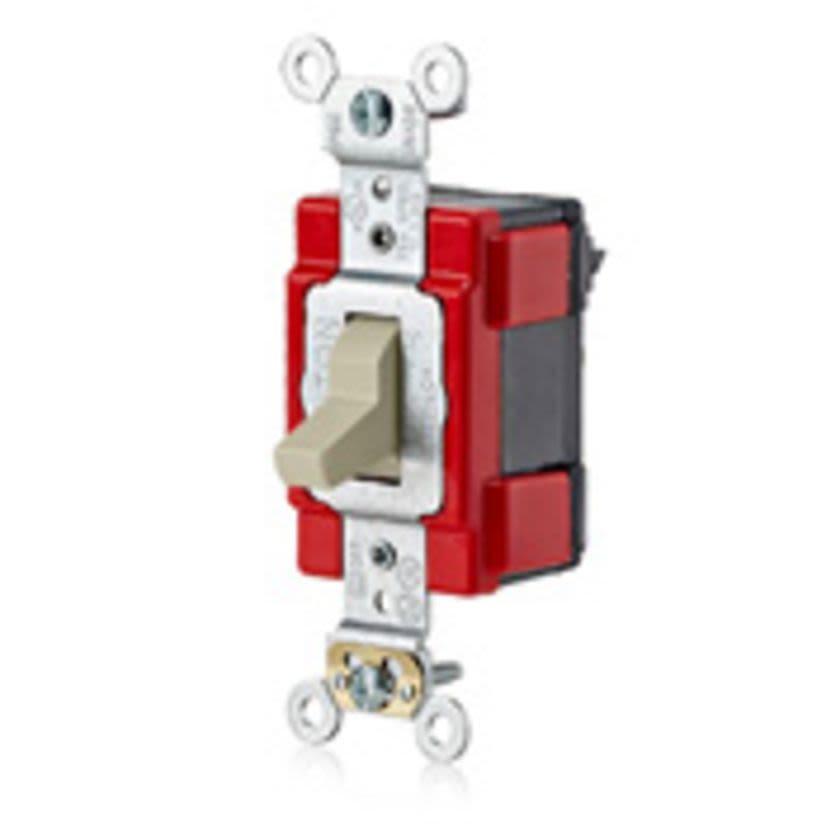

Leviton M1221-LHI
Leviton Lev-Lok M1221-LHI Illuminated Toggle Switch, 120 V AC, 20 A, 1 hp Power Rating
Leviton M1221-LHI
Leviton Lev-Lok M1221-LHI Illuminated Toggle Switch, 120 V AC, 20 A, 1 hp Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1221-LHI
Werner Part #4036393
UPC078477495001
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1221-LHI
Werner Part #4036393
UPC078477495001
Product Description
Leviton Lev-Lok Toggle Switch, Illuminated, 120 V AC, 20 A, 1 hp Power, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Modular Terminal, 50000 Cycles Operating Cycles, Polybutylene Terephthalate, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.5 in W x 1.54 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorIvory
Country of OriginMX
Dimensions46 in H x 1.5 in W x 1.54 in D
Electrical Ratings1 hp
Enclosure TypeNEMA WD-1/WD-6
GradeExtra Heavy-Duty Industrial Specification Grade
ManufacturerLeviton
MaterialPolybutylene Terephthalate
Mounting TypeSurface
NEMA RatingWD-1 & WD-6
Number of Poles1
Package Height9.13 in
Package Length12 in
Package TypeEACH
Package Weight5.76 lbs
Package Width9.38 in
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeModular
TypeIlluminated
Type / StyleIlluminated
Voltage Rating120 V AC
Applications
Commercial Applications
Warranty
10 Years Limited
Features
- 1 hp at 120 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|cULus File No. E7458|NOM 057|UL94 V-2 Flammability Rating
