Leviton M1221-E

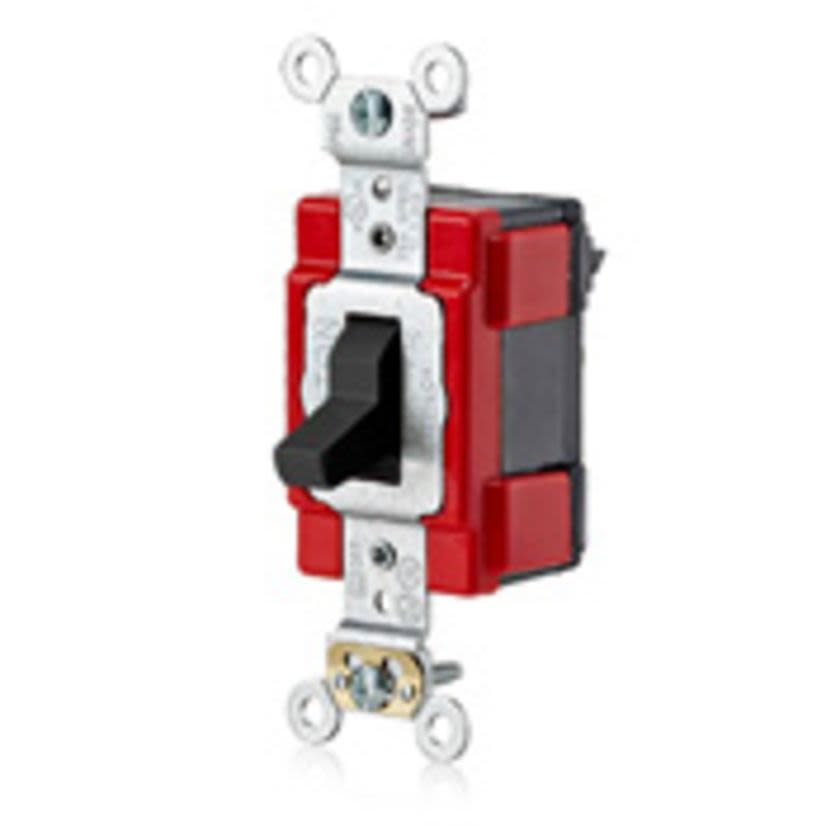

Leviton Lev-Lok M1221-E Large Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating
Leviton M1221-E
Leviton Lev-Lok M1221-E Large Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1221-E
Werner Part #4062457
UPC078477494387
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1221-E
Werner Part #4062457
UPC078477494387
Product Description
Leviton Lev-Lok Toggle Switch, Large, 120/277 V AC, 20 A, 800 W, 1000 VA Power, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Modular Terminal, 50000 Cycles Operating Cycles, Polybutylene Terephthalate, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.5 in W x 1.54 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeToggle
ColorBlack
Country of OriginMX
Dimensions46 in H x 1.5 in W x 1.54 in D
Electrical Ratings800 W, 1000 VA
Enclosure TypeNEMA WD-1/WD-6
GradeExtra Heavy-Duty Industrial Specification Grade
ManufacturerLeviton
MaterialPolybutylene Terephthalate
Mounting TypeSurface
NEMA RatingWD-1 & WD-6
Number of Poles1
Package Height9.13 in
Package Length17.56 in
Package TypeEACH
Package Weight9.15 lbs
Package Width9.25 in
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeModular
TypeLarge
Type / StyleLarge
Voltage Rating120/277 V AC
Applications
Commercial Applications
Features
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|cULus File No. E7458|NOM 057|UL94 V-2 Flammability Rating
Warranty
10 Years Limited
