Leviton TWR20-W

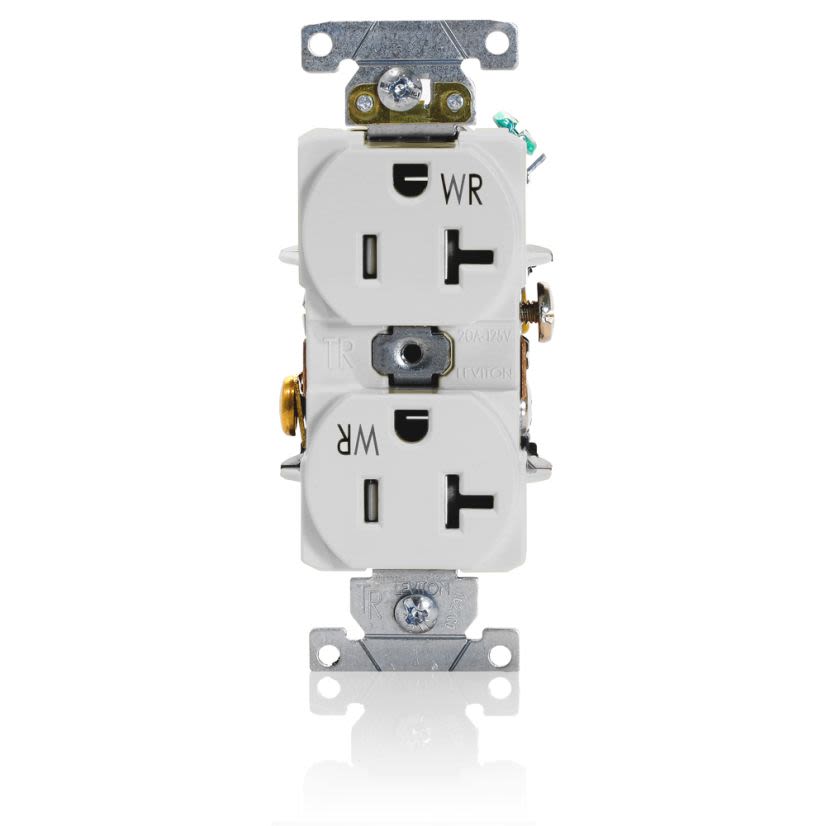

Leviton TWR20-W Duplex Self-Grounding Tamper and Weather Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton TWR20-W
Leviton TWR20-W Duplex Self-Grounding Tamper and Weather Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 81more info
|
BrandLeviton
MFG #TWR20-W
Werner Part #3800384
UPC078477381854
In Stock: 81more info
|
BrandLeviton
MFG #TWR20-W
Werner Part #3800384
UPC078477381854
Product Description
Leviton, TWR20-W, Straight Blade Receptacle, Duplex Self-Grounding Tamper and Weather Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 70 deg C, Side Wire Terminal, Nylon, White
Attributes
Documents
Features
Warranty
Attributes
ColorWhite
Country of OriginMX
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 70 deg C
Terminal TypeSide Wire
TypeDuplex Self-Grounding Tamper and Weather Resistant
Voltage Rating125 V AC
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- Withstands 2000 VAC per UL498 dielectric voltage
- Full rated current limiting
- Maximum 30 deg C after 100 cycles OL at 150% rated current temperature rise
- Nylon body/face material, brass terminal/grounding screws/ground clips, nickel plated brass strap material, zinc plated steel clamp nuts
- 14 to 10 AWG terminal accommodation
- Brass-hot, green ground, silver-neutral terminal ID
- Tamper resistant
Warranty
2 years Limited
