Leviton T8300-W

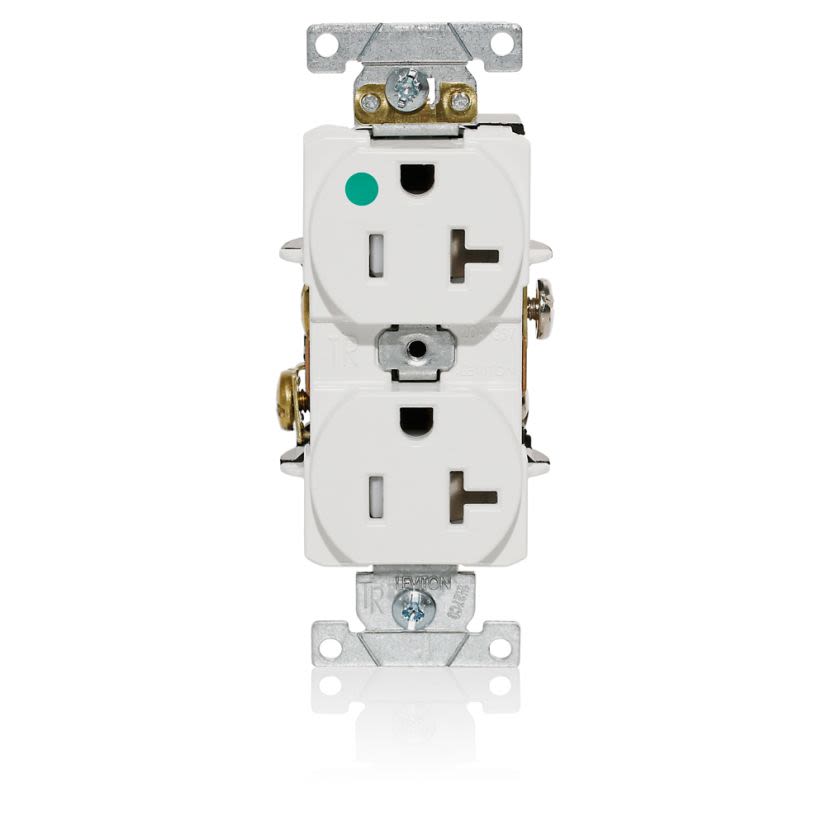

Leviton T8300-W T8300 Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton T8300-W
Leviton T8300-W T8300 Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 106more info
|
In Stock: 106more info
|
Product Description
Leviton Straight Blade Receptacle, Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant, Series: T8300, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, White, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
ColorWhite
Country of OriginMX
Dimensions4.06 in H x 1.71 in W x 1.17 in D
GradeHospital
Horsepower1 hp
ManufacturerLeviton
MaterialPBT Polyester Blend
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height5.13 in
Package Length12.75 in
Package TypeEACH
Package Weight11 lbs
Package Width8.5 IN
SeriesT8300
Temperature Rating-40 to 75 deg C
Terminal TypeBack/Side Wire
TypeDuplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant
Voltage Rating125 V AC
Documents
Applications
Healthcare Facilities, Educational Buildings/Dorms and Institutional Buildings
Features
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Wide receptacle face shelf provides exceptional support to the wallplate or box cover
- Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provides compliance with NEC Article 406 for tamper-resistant receptacles
- Body and face made of impact-resistant advanced engineering polymer for extreme durability
- Universal strap design provides ample support for electrical box installations and includes multiple break-off tabs to eliminate interference with virtually any cover or wallplate
- Ground and contact terminal isolated from mounting strap to prevent system noise interference
- Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
- External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
- Molded in ribs prevent terminal screws from making contact with wall box
Warranty
10 years Limited
